Roxx the NEW Original
New times demand new standards. With an eye to the people now and in the future, we have further developed the first ever modular wheelchair: Roxx - the NEW original -. This 2nd-generation Roxx allows you, as a professional, to meet the specific mobility needs of all your clients. The multi-adjustable frame forms the basis for all the drive and wheelchair components; the stable basic frame can be fitted with different wheel combinations, Matrixx seats, backrests and leg rests and drives. The result is a durable wheelchair with many adjustment options that is comfortable to sit in, easy to handle and, thanks to its unique oval tubular frame, also looks good.

  • Multi-adjustable basic frame can be customised for all users
  • Optimum triple options thanks to ample leg and foot space under the seat
  • The strong oval tubular frame makes the wheelchair suitable for users up to 160 kg
  • Can be delivered with @Work or @Ease auxiliary drives
  • Crash test-safe
Product images
Abbreviation Measurement points Specifications
SW Seat width 37 - 60 cm
SD* Seat depth 42 - 58 cm
SH* Seat height 38 - 60 cm

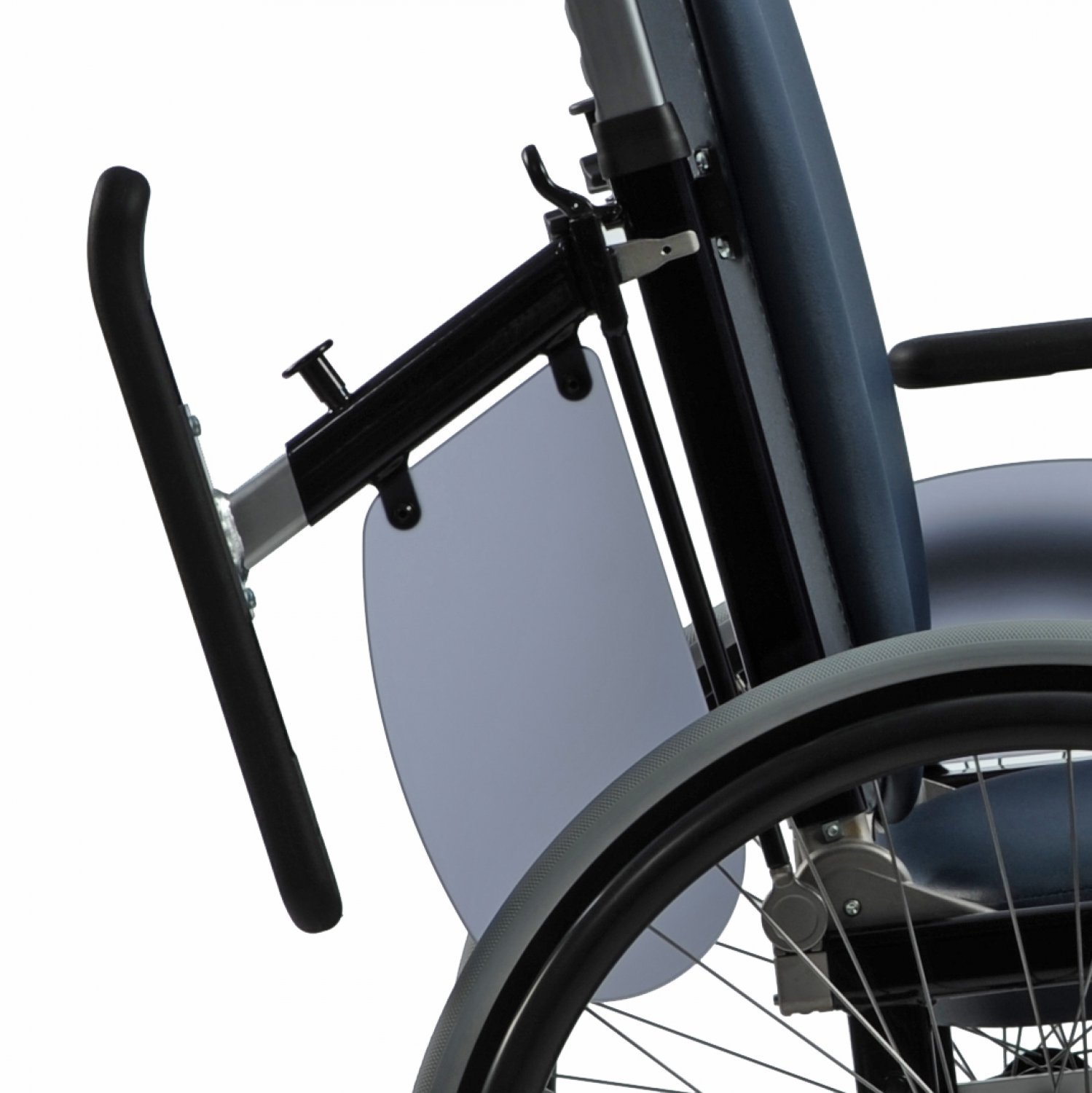

AH Armrest height 18 - 27 cm (6 positions)
LL Lower leg length:
Footrest 35 - 45 cm / 42 - 57 cm / 50 - 65 cm

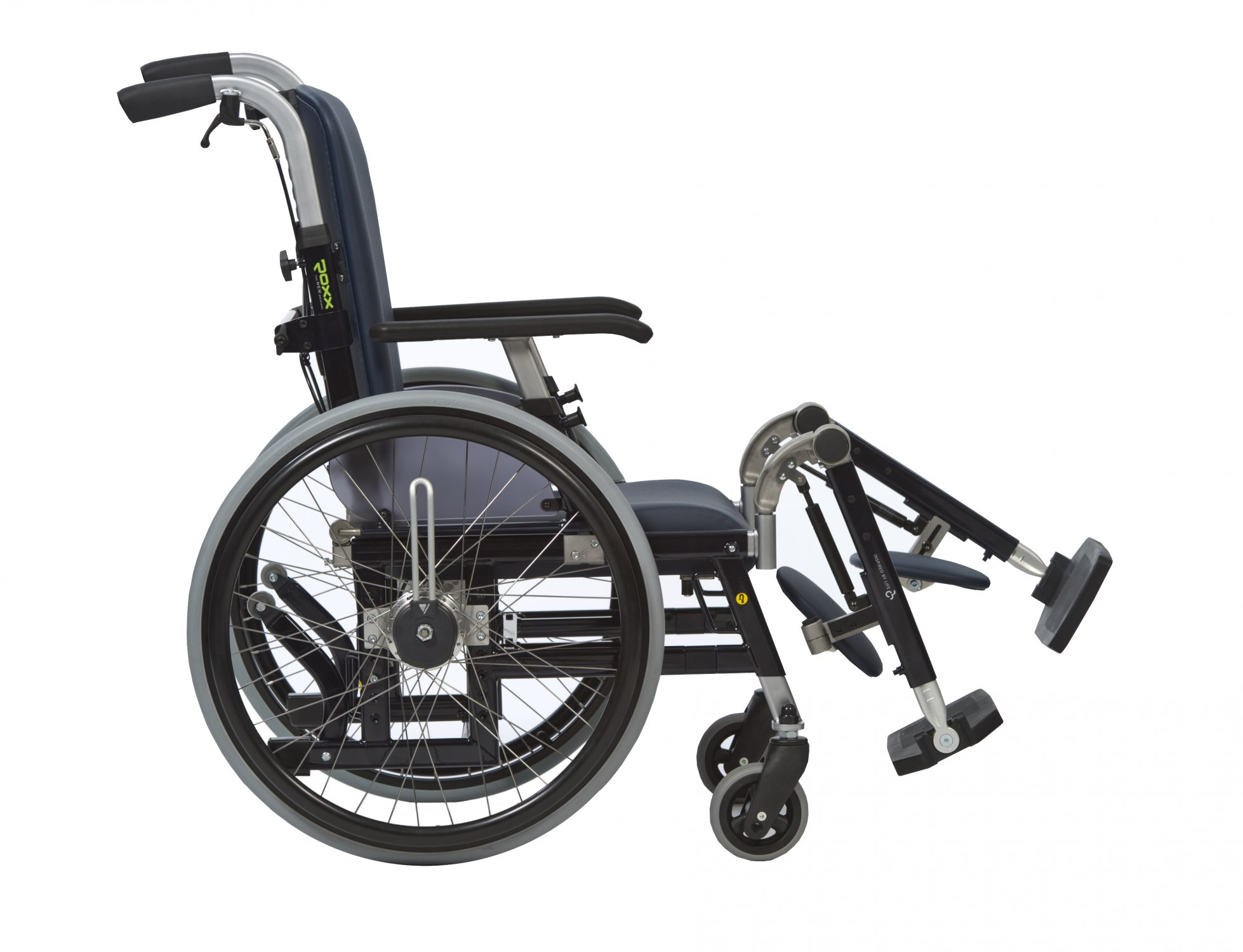

Comfort leg rest 35 - 45 cm / 40 - 55 cm / 50 - 65 cm
WW Wheelchair width SW + 23 cm**
+ @Work auxiliary drives WW + 2 cm
+ @Ease auxiliary drives WW + 4 cm
folded (incl. wheels) 31 cm
Seat angle 0º or adjustable

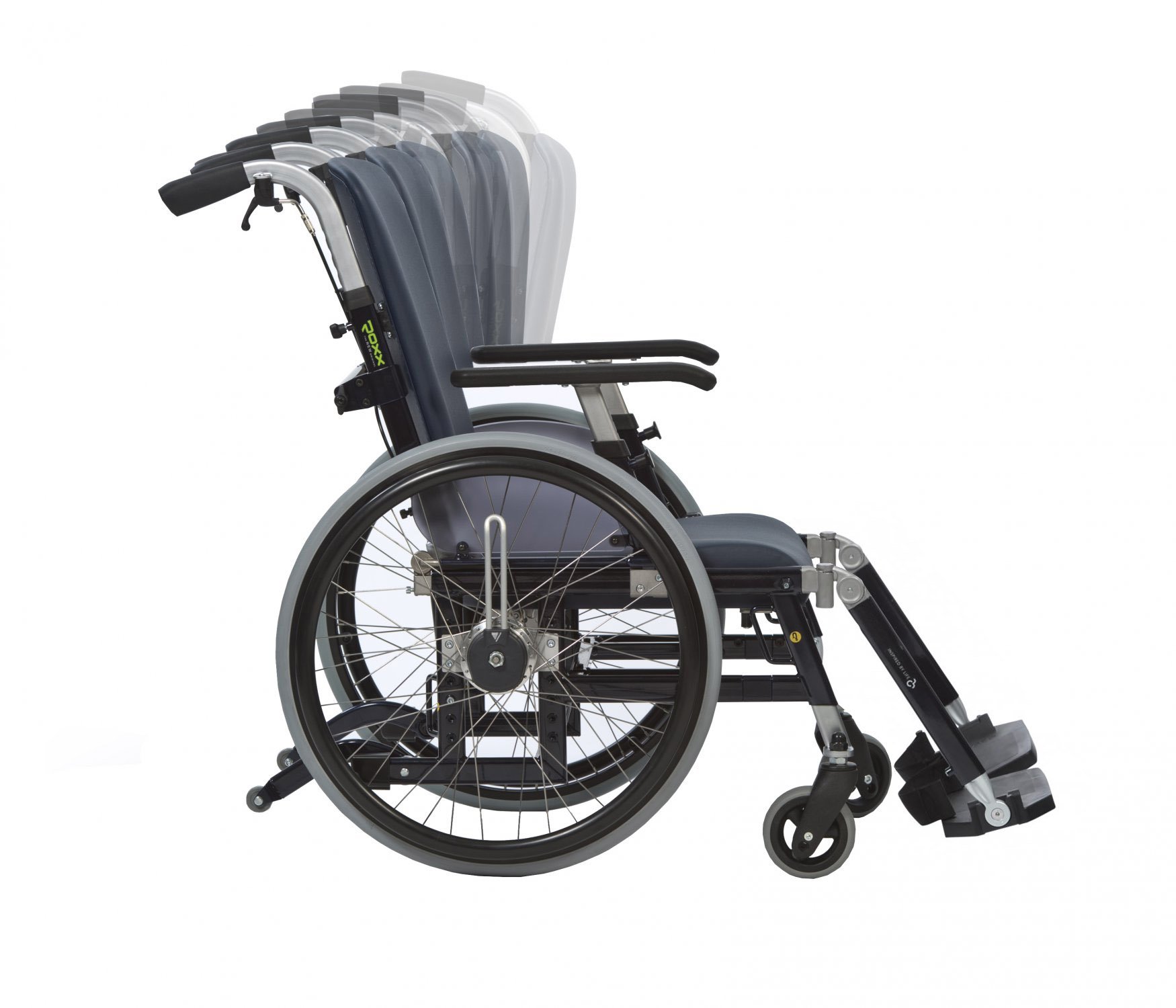

Back angle 0 - 180º (one-off adjustable)
85 - 105º (115º) (continuously adjustable)
Back height Adjustable by cm
Camber position
Total weight From 27 kg
Lifting weight From 10 kg
Maximum user weight 160 kg
Complies with EN 12182, EN 12183, ISO 7176-19
Crash test safe yes

* Seat height and seat depth are measured with standard seat and backrest; see the Matrixx measurement sheet for other configurations
** Add-ons at sides do not affect the width of the wheelchair


The Roxx in brief

  • Light lifting weight
  • Easy to fold and take with you
  • Standard with pedal bar and handles that can be adjusted in height
  • Adjustable wheel base
  • High level of sitting comfort
  • Adjustable seat depth, seat height, seat angle and back angle
  • Matrixx seating parts can be switched with other Life & Mobility chairs
  • Quick-release rear wheels
  • Various options and accessories such as headrest, table top, cane holder, spoke protectors, posture belt
  • Crash test-safe: approved for transport in taxi or minibus
