Match

Always the perfect Match
Together, the Match and selected orthoses form a well-thought-through unit that is also crash test-safe. That’s the Match with seating orthosis. The Match is available in self-rider and push models. The match has a convenient and easily adjustable seat angle with a well-thought-through seat angle indicator and easily adjustable seat angle tilt.

Available in self-rider and push models
Push model can be supplied with Aura push support
The combination of the Match with a number of selected seating orthoses is crash test-safe
Wide range of balance point positions
Brakes can be easily reached from all sides
Contemporary design

Compare Parts catalogue View video

Product images
Specifications
Characteristics
Downloads

Product images

Overview of wheelchairs and auxiliary drives

Push model

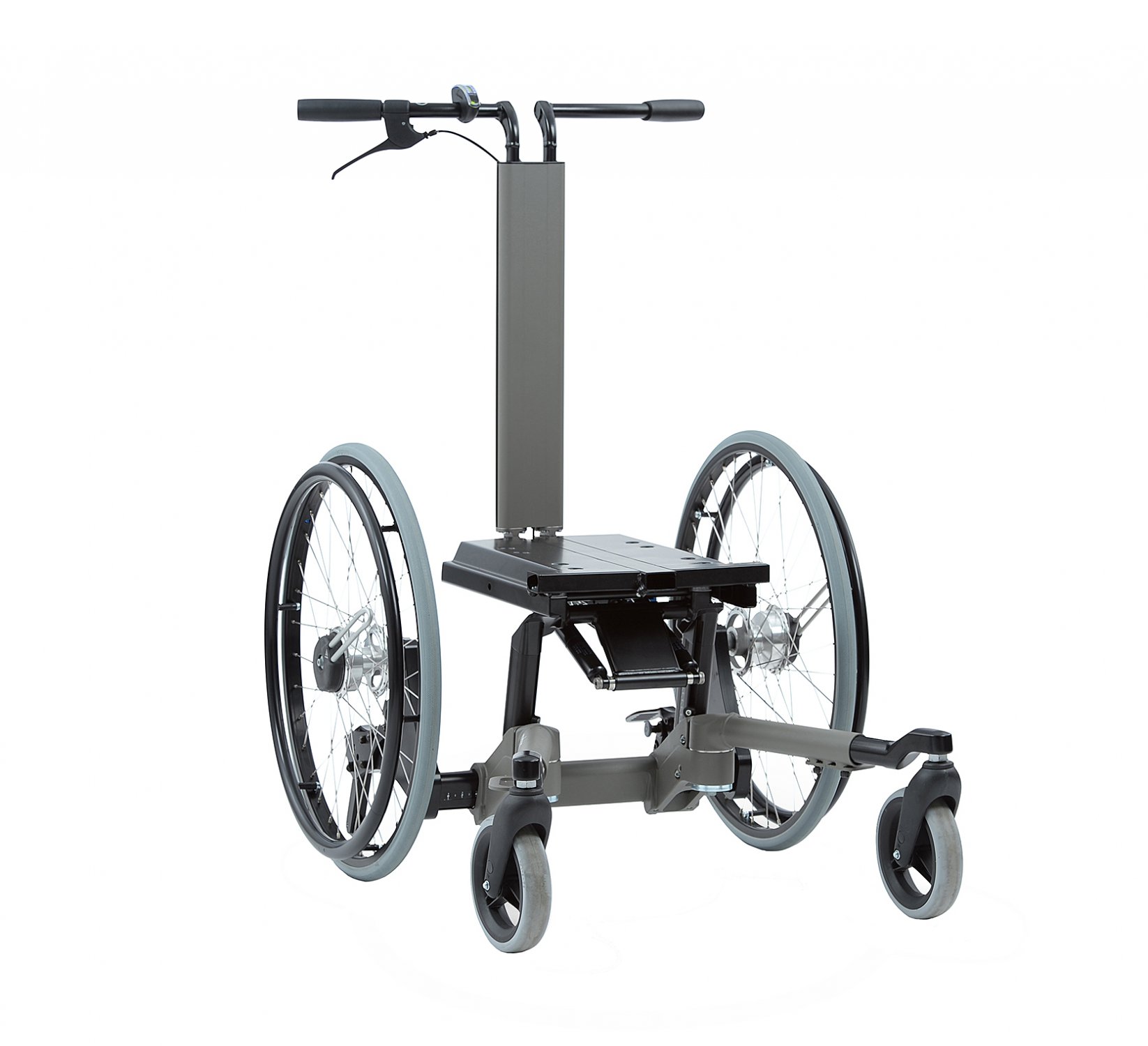

Self-rider

Padded armrests and central leg rest

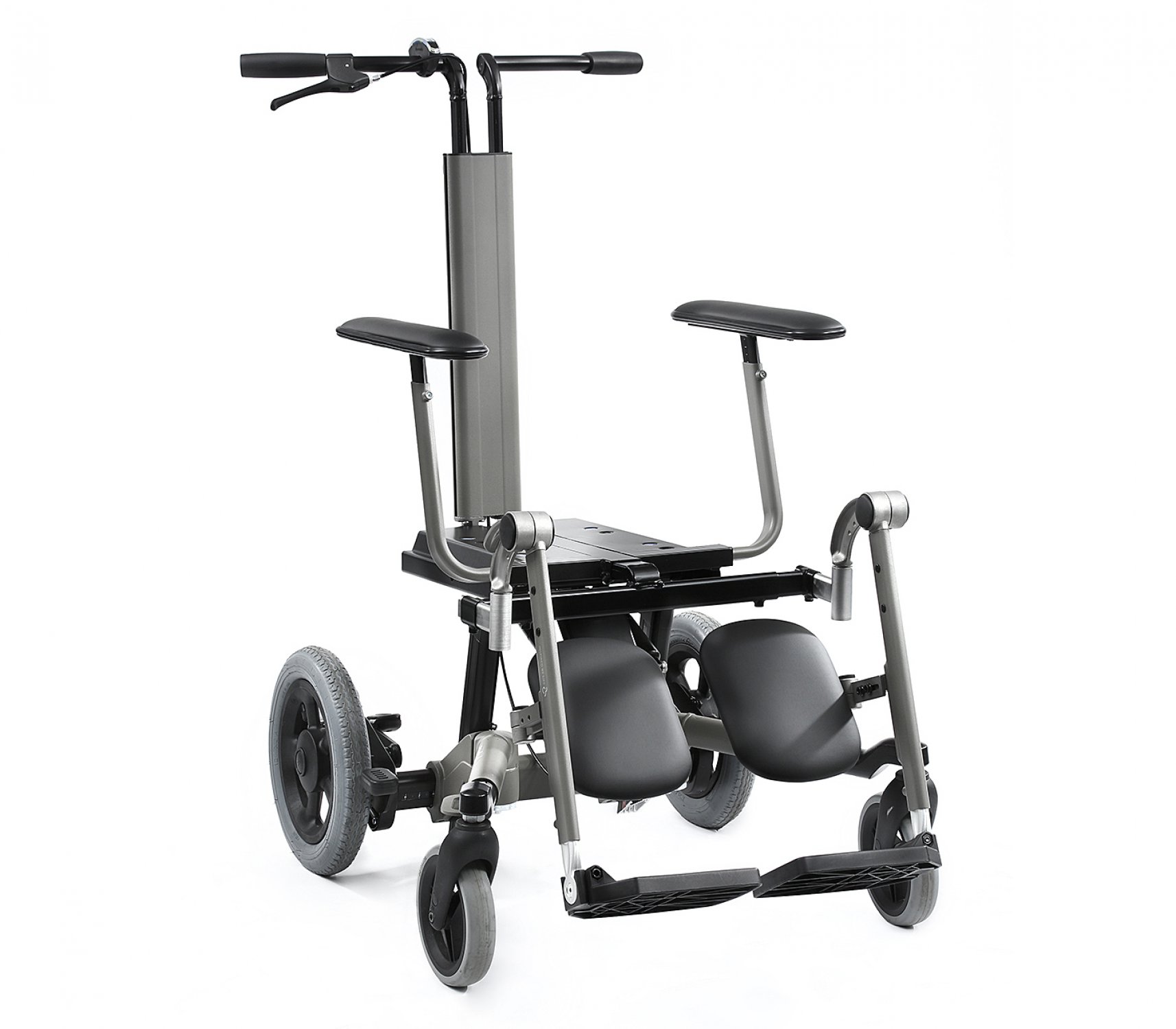

Padded armrests and comfortable leg rests

Push model maximally tilted

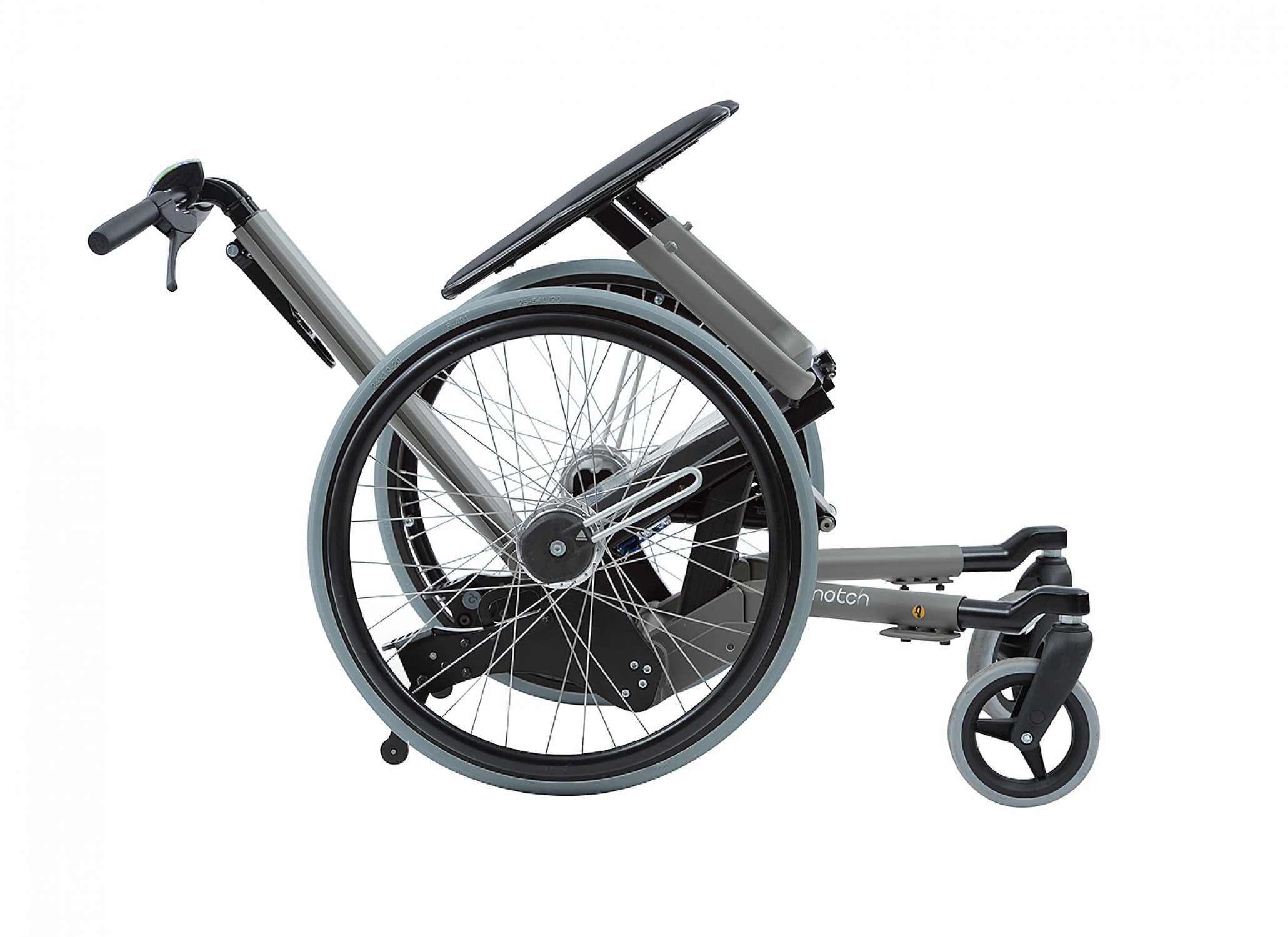

Self-rider maximally tilted

Match with orthosis rear view

Match with orthosis side view

Match with orthosis tilted

Match with orthosis maximally tilted

Specifications

Match Push model

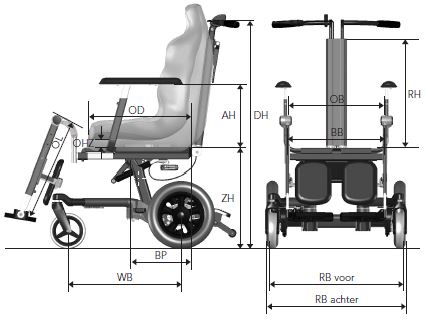

Abbreviations	Measurement points	Specifications
MW	Moulded seat width	42 - 67 cm (curve 1 & 2)
MD	Moulded seat depth	40 - 65 cm
	i.c.w. seat depth shortener	30 - 55 cm
SH	Seat height	30 - 60 cm (column 1, 2, 3 & 4)
	+ Aura push support	37 - 60 cm (column 2, 3 & 4)
WB	Wheelbase	50 - 60 cm
WW rear	Wheelchair width rear	55 - 70 cm
	+ Aura push support	67 - 75 cm
WW front	Wheelchair width front	60 - 75 cm
BP	Balance point	Adjustment length 15 cm
AH	Armrest height	17 - 40 cm
LW	Leg rest width	39 - 69 cm (leg rest comfort)
BH	Back support tube height	52 cm
PH	Pushbar height	80 - 150 cm (PH depending on SH)
LL	Lower leg length:
	Comfort leg rest	35 - 45 cm / 40 - 55 cm
	Central leg rest	Depending on HMS
HMS	Height of moulded seat	Vertical distance top
		assembly plate - underside
		upper leg at front of moulded seat
	Seat angle adjustment	-5º - 30º (range is adjustable)
	Backrest angle adjustment	85º - 140º (range is adjustable)
	Armrest depth	Adjustment length 8 cm
	Total weight basic model	37.5 kg
	Maximum user weight	160 kg
	Complies with*:	EN 12182, EN 12183, ISO 7176-19

* Remember: Match combinations for which no covenant has been drawn up are not declared to be crash-proof.

Match in combination with:

Bert Stevens seating orthosis
Kersten seating orthosis
Orthototal ABS seating orthosis
Orthototal Flex rounded seating orthosis
Orthototal Flex flat seating orthosis
Orthototal Soft rounded seating orthosis
Orthototal soft flat seating orthosis
Perteon itura seating orthosis
RZ seating orthosis Classic
RZ Flex
RZ seating orthosis Contour
Welzorg Aquarius Volschuim seating orthosis
Welzorg WSP Pur seating orthosis
Welzorg WSP Polyester 280 or 340mm seating orthosis
Exello seating orthosis
Ortho-Innovatief seating orthosis
Lewis seating orthosis with back support
Supportec Foam round seating orthosis
Supportec Foam Flex roind seating orthosis
Supportec Foam flat seating orthosis
Supportec Foam Flex flat seating orthosis
Supportec Hardshell seating orthosis
Supportec Hardshell Flex seating orthosis
Summit Alpine Plus seating orthosis
Summit Alpine Active seating orthosis
Summit Alpine Curve seating orthosis

Abbreviation	Measurement points	Specifications
MW	Moulded seat width	42 - 60 cm (curve 1 & 2)
SH	Seat height	30 - 60 cm (column 1, 2, 3 & 4)
MD	Moulded seat depth	40 - 65 cm
	i.c.w. seat depth shortener	30 - 55 cm
WB	Wheelbase	50 - 60 cm
WW rear	Wheelchair width rear	60 - 78 cm
WW front	Wheelchair width front	60 - 75 cm
BP	Balance point	Adjustment length 15 cm
AH	Armrest height	17 - 40 cm
LW	Leg rest width	39 - 69 cm (leg rest comfort)
RH	Back support tube height	52 cm
PH	Pushbar height	80 - 150 cm (PH depending on SH)
LL	Lower leg length:
	Comfort leg rest	35 - 45 cm / 40 - 55 cm
	Central leg rest	Depending on HMS
HMS	Height of moulded seat	Vertical distance top
		assembly plate - underside
		upper leg at front of moulded seat
	Seat angle adjustment	-5º - 30º (range is adjustable)*
	Backrest angle adjustment	85º - 140º (range is adjustable)
	Armrest depth	Adjustment length 8 cm
	Total weight basic model	39 kg
	Maximum user weight	160 kg
	Complies with**:	EN 12182, EN 12183, ISO 7176-19

Characteristics

The Match in brief

The combination of the Match with a number of selected seating orthoses is crash test-safe
Available in push and self-riding models
The seat angle can be adjusted and reproduced to suit your preferences thanks to the clear seat angle indicator
Easily adjustable seat angle from -5 to 30 degrees
Seat angle tilt can be limited, both forwards and backwards
The angle of the seat is easy to operate, with and without user
Wide range of seat height options, starting at 300 mm
Brake pedals accessible from all sides, easy to operate
Adjustable balance point position, independent of the seat support offered.
Feet and legs have ample space thanks to the adjustable track width of the front wheels
Safe transport thanks to attachment hooks for use in a taxi minibus
Perfect ergonomic push position thanks to the easy-to-adjust push handle height
Push model can be supplied with Aura push support
