Canto Nxt

The Canto Nxt is a tilt-in-space wheelchair, with a multifunctional tilting frame that can accept modular add-ons. This makes it a comfortable seat-tilt wheelchair that offers easy adjustment and optimal operation, where safety takes a prominent position. The multi-adjustable frame forms the basis for all the drive and wheelchair components; the stable basic frame can be fitted with different wheel combinations, Matrixx seats, backrests and leg rests and drives.

available in push and self-riding models
customised solution for all users up to 150
multifunctional, modular tilting frame
easily operated seat tilting
anti-tip supports are supplied as standard
can be used in combination with the Kelvin seat system
can be supplied with Aura push support (push model)
can be supplied with @Ease or @Work push support (self-rider)

Compare Parts catalogue

Product images
Specifications
Characteristics
Downloads

Product images

Overview of wheelchairs and auxiliary drives

Canto Nxt self-rider

Canto Nxt push model

Canto Nxt push model with central leg rest

Canto Nxt push model seat tilt

Canto Nxt push model with Aura push support

Backrest hinge

Hub brake (self-rider)

Canto Nxt push model front wheel

Canto Nxt push model brake system

Specifications

Self-riding model

Abbreviation	Measurement points	Specifications
SW	Seat width	37 / 42 / 47 / 52 cm (± 4 cm)
SD*	Seat depth	42 - 56 cm
SH*	Seat height	42 - 57 cm (7 positions 2.5 cm)
AH	Armrest height	18 - 27 cm (6 positions ?)
WW	Wheelchair width (hub brake)	SW + 28 cm
	Wheelchair width (tyre brake)	SW + 26 cm
	+ @Work auxiliary drives	WW + 2.5 cm
	+ @Ease auxiliary drives	WW + 4 cm
LL	Lower leg length:
	Footrest	38 - 48 cm / 45 - 60 cm / 53 - 68 cm
	Comfort leg rest	38 - 48 cm / 43 - 58 cm / 53 - 68 cm
	Central leg rest	38 - 54 cm / 49 - 66 cm
	Seat angle adjustment	-5 - 25º / 0 - 30º
	Backrest angle adjustment	0 - 180º (one-off adjustable)
		85 - 125º (continuously adjustable)
	Total weight	38 kg
	Maximum user weight	150 kg
	Complies with	EN 12182, EN 12183, ISO 7176-19
	Crash test safe	yes

* Seat height and seat depth with standard seat and anatomic backrest; see the Matrixx measurement sheet for other configurations

Abbreviation	Measurement points	Specifications
SW	Seat width	37 / 42 / 47 / 52 cm (± 4 cm)
SD*	Seat depth	42 - 56 cm
SH*	Seat height	42 / 47 / 52 / 57 cm
AH	Armrest height	18 - 27 cm (6 positions)
WW	Wheelchair width	SW + 21 cm
	+ Aura push support	SW + 30 cm
LL	Lower leg length:
	Footrest	38 - 48 cm / 45 - 60 cm / 53 - 68 cm
	Comfort leg rest	38 - 48 cm / 43 - 58 cm / 53 - 68 cm
	Central leg rest	38 - 54 cm / 49 - 66 cm
	Seat angle adjustment	-5° - 25° / 0° - 30°
	Backrest angle adjustment	0 - 180º (one-off adjustable)
		85 - 125º (continuously adjustable)
	Total weight	38 kg
	Maximum user weight	150 kg
	Complies with	EN 12182, EN 12183, ISO 7176-19
	Crash test safe	yes

Characteristics

The Canto Nxt in brief

A customised personal solution, irrespective of the individual user’s weight (max 150 kg), body dimensions and state of health
Multifunctional, modular tilting frame suitable for all drive and structural applications; the basic frame can be fitted with different wheel combinations, seat system elements and auxiliary drives
Can be foot-propelled; the structure of the frame offers ample space for the lower legs. The seat height can also be adjusted to a lower position, which makes it easier to propel the wheelchair
Low rolling resistance ensures light riding. A solution for both wheelchair user and companion
The seat angle of 30 degrees is easily adjustable, with or without user
Back angle is adjustable either once or continuously
Anti-tip supports are supplied as standard for maximum safety
The riding properties of the wheelchair can be adjusted to the needs of the user
Crash test-safe; approved for safe transport in taxi
Available in push and self-riding models
Push model can be supplied with Aura push support
Self-rider can be supplied with @Work and @Ease auxiliary drive
Can be supplied with Kelvin seat elements.

Downloads

Brochure Modular wheelchairs & Push support EN

See Download

Matrixx Measurement sheet EN

See Download

Canto Nxt User Manual NL FR DE EN

See Download

Canto Nxt

Overview of wheelchairs and auxiliary drives

Overview of wheelchairs and auxiliary drives

Canto Nxt self-rider

Canto Nxt self-rider

Canto Nxt push model

Canto Nxt push model

Canto Nxt push model with central leg rest

Canto Nxt push model with central leg rest

Canto Nxt push model seat tilt

Canto Nxt push model seat tilt

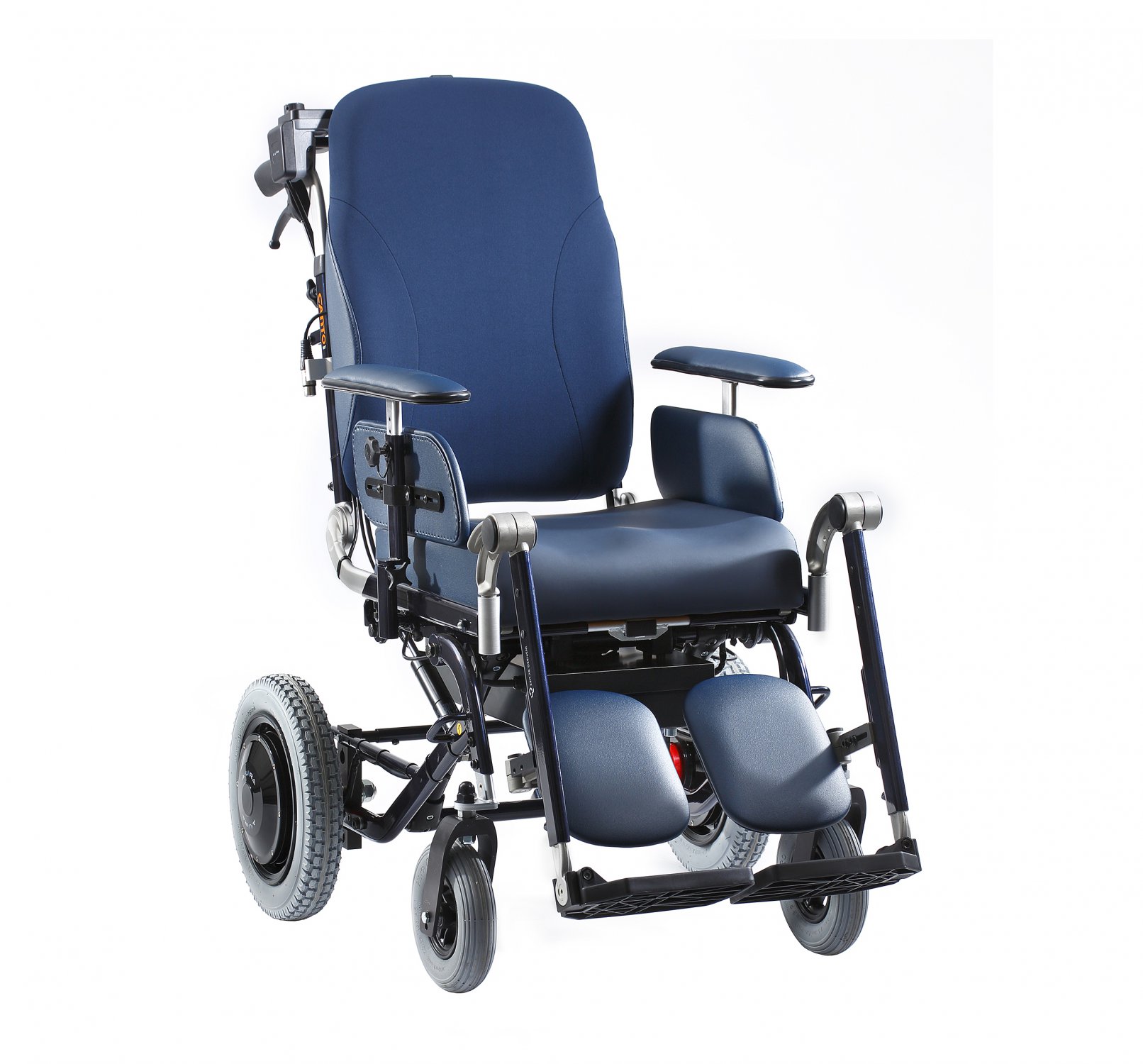

Canto Nxt push model with Aura push support

Canto Nxt push model with Aura push support

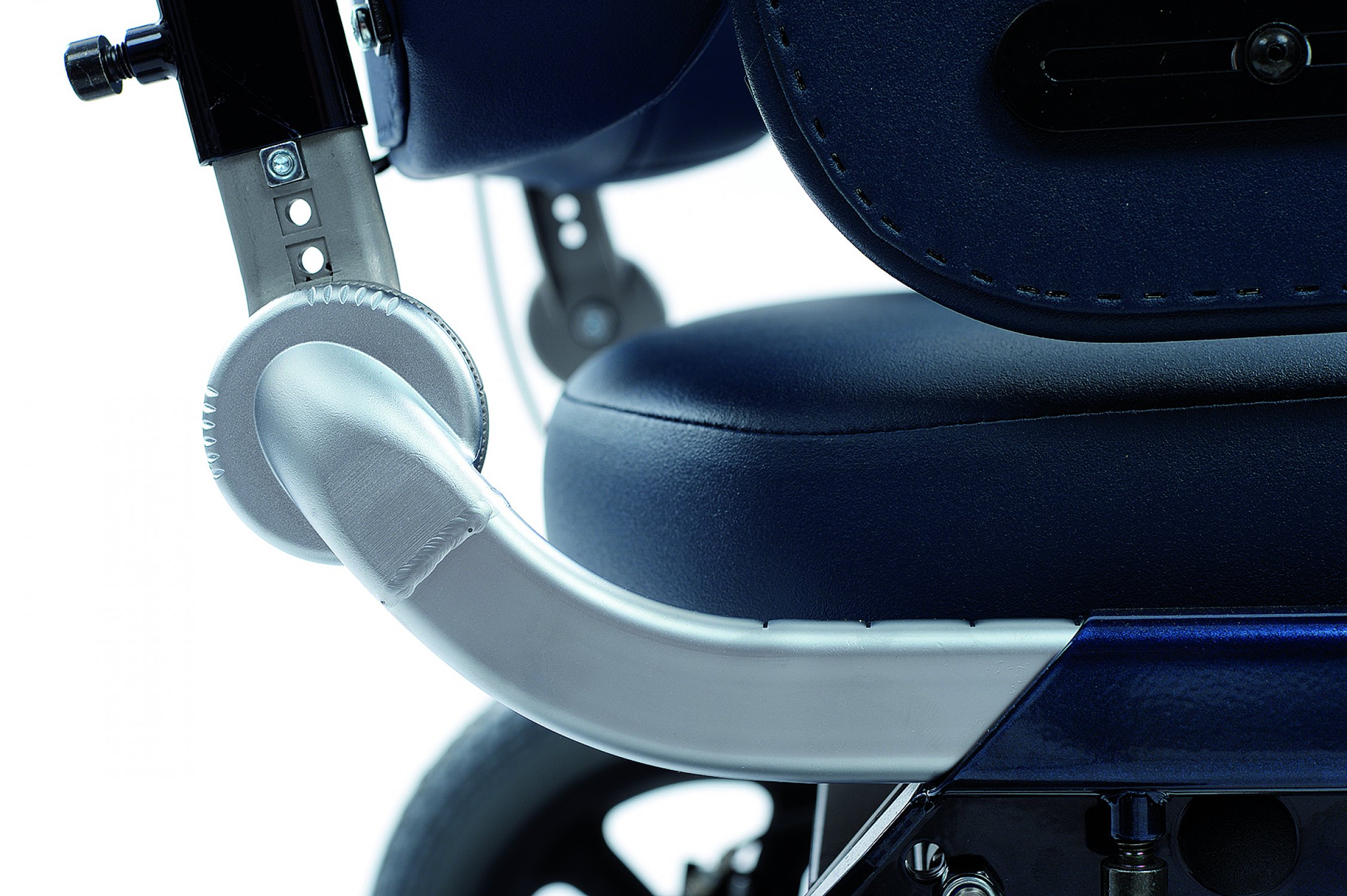

Backrest hinge

Backrest hinge

Hub brake (self-rider)

Hub brake not integrated on the parking brake (self-rider)

Hub brake (self-rider)

Hub brake integrated on the parking brake (self-rider)

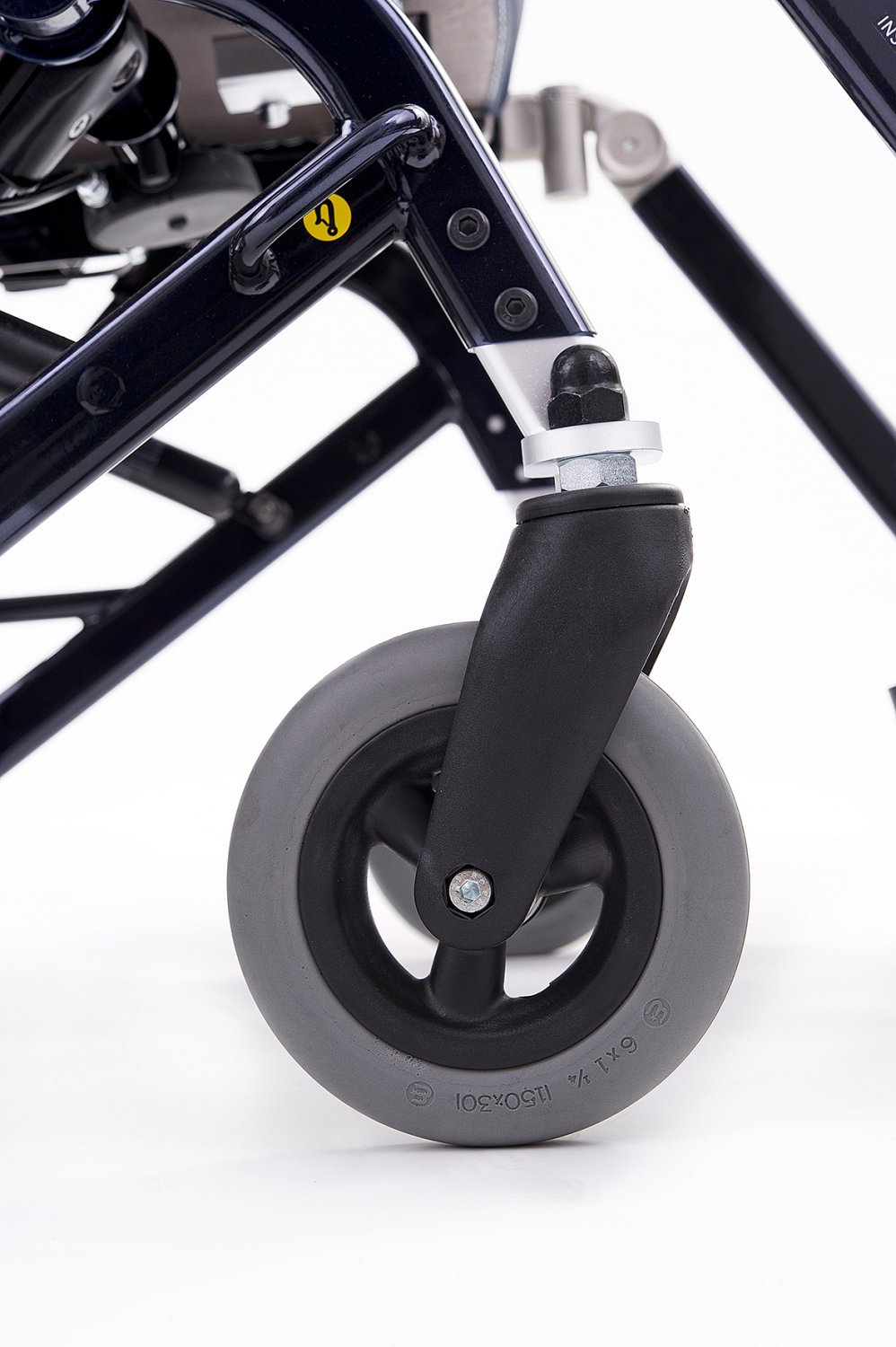

Canto Nxt push model front wheel
