MID Lectus

MID Lectus
The MID Lectus is one of the latest additions to the Karma product family. With its clear design, colour concept and styling it is a real eye-catcher.

The MID Lectus impresses with its powerful mid-wheel drive chassis, making it extremely compact and manoeuvrable. The 6 individually mounted wheels with their hydraulic suspension offer a high level of ride comfort and stability. Equipped with the proven Lectus seating system the MID also offers a high level of seating comfort, with an extensive range of seating adjustments. Equipped with the latest R-Net drive technology the possibilities for special controls are endless from head controls to chin controls and a multitude of joystick controls from extremely light touch right through to heavy duty. In addition specialist adaptations can be made to the chair specifically tailored to meet the users needs. So all you need to do is ask!

  • Central leg support with manual bio-mechanical leg length adjustment
  • Bio-mechanical backrest ranging from 90 – 180°
  • Bio-mechancial height adjustable armrests
  • Manually height adjustable footplates
  • Parallel swingaway joystick mount
  • P&G R-Net-Control system
  • High-power front and rear LED-lighting
  • Black tyres (solid puncture proof available as option)

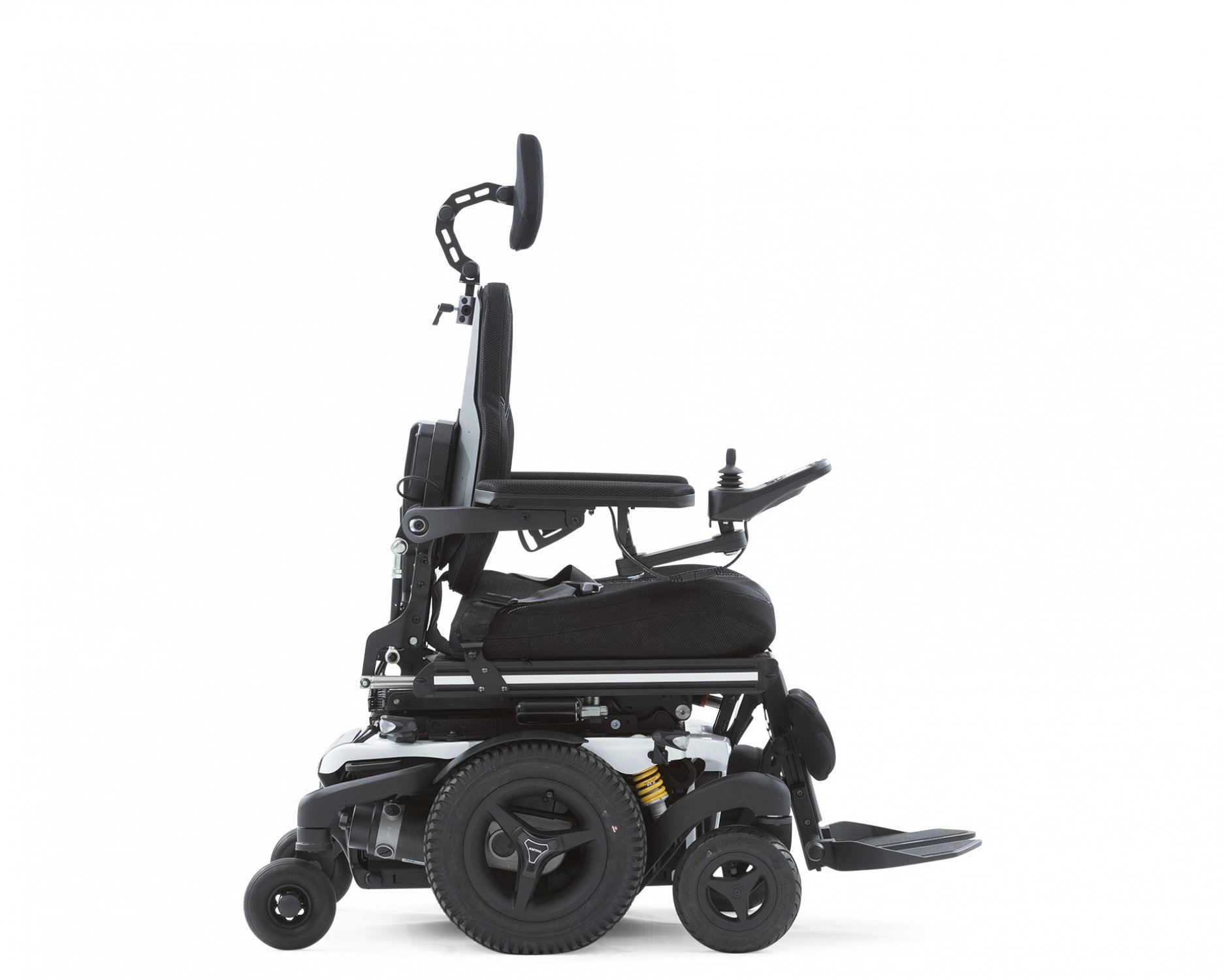

Product images
Specifications
Abbr. Measurement points Specifications
SW Seat width 42 - 62 cm
SD Seat depth 42,5 – 60 cm
SH Min. seat height (including cushion) 46 - 76 cm
TH Total height 111 cm
TL Total length 98,5 cm
TW Total width 62 cm
Leg length adjustment 25 - 60 cm (adjustable)
Seat lift (optional) 30cm, electric
Back angle reach 180°, Manual / electric
Leg rest adjustment 180°, Manuell / electric
Seat angle reach 50° bio-mechanical, electric (optional)
Maximum speed 6 km/h, 10 km/h, 12,5 km/h
Action radius 36 km
Batteries 2 x 70 Ah
Charger
Total weight (including batteries) 175 kg
Maximum user weight 136 kg
Turning radius
Front wheels diameter 8
Mid wheels diameter 14
Rear wheels diameter 6
Complies with ISO 7176-19
Drive MWD
Seating system Lectus
Controls R-NET
Motor capacity 2 x 350 W (4-P)
Crash test safe Yes
Hood colour White / Orange / Silver
Suspension 6 wheels Adjustable
Options 3D adjustable headrest restraint
On-board USB charger
Characteristics

MID Lectus in brief

  • Central leg support with manual bio-mechanical leg length adjustment
  • Bio-mechanical backrest ranging from 90 – 180°
  • Bio-mechancial height adjustable armrests
  • Manually height adjustable footplates
  • Parallel swingaway joystick mount
  • P&G R-Net-Control system
  • High-power front and rear LED-lighting
  • Black tyres (solid puncture proof available as option)

Options

  • Powered bio-mechanical backrest 90 – 180°
  • Powered tilt in space 0 – 50°
  • Powered angle adjustable legrests 90 -180°
  • Powered height adjustable footplate 150mm compensation
  • Powered height adjustable seat lift 300mm
  • Speed: 6 / 10 / 12.5 km/h
  • 3D adjustable headrest restraint
  • On-board USB charger
