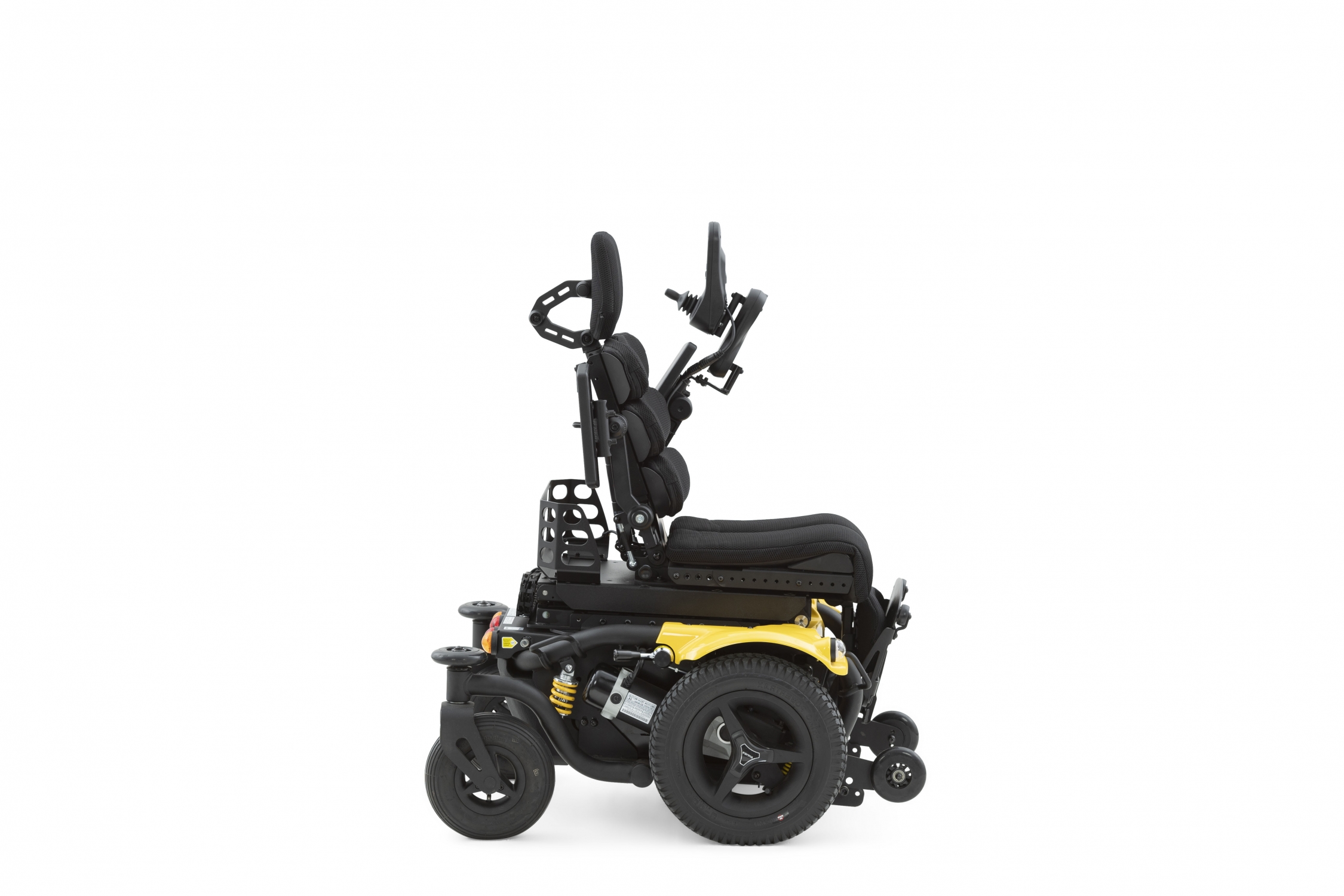

Kameleon, the power wheelchair with the adaptability of a real chameleon.

It looks tough, has a powerful engine and endless possibilities. This paediatric power wheelchair has the adaptability of a real chameleon. With its many adjustment options, modular structure and power functions, the Kameleon offers all the possibilities for a safe journey from toddler to young adult. It grows along with the child as it grows older while offering the parents optimum support in their care.

  • Easily adjustable to the ever-changing needs and growth of the child
  • Easy and intuitive to use
  • Safe to use during transport in a bus or car
  • Support with care tasks (lifting and tilting function)
  • Robust design for daily and intensive use
  • Compact for indoor use and excellent driving characteristics for outdoor use
  • Choice for up to 4 Power functions, enabling control over the recline and legrest angle, height and tilt-in space adjustments
  • The 45° tilt-in space is included in the standard configuration
Specifications
Size 1 Size 2 Size 1 Size 2
Minimum Maximum Minimum Maximum
Seat width 25 cm 30 cm 35 cm 40 cm
Seat depth 25 cm 39 cm 29 cm 43 cm
Seat height (liftrange 300 mm) 46 cm 76 cm 46 cm 76 cm
Backrest height 42 cm 60 cm 50 cm 68 cm
Seat angle -3° 42° -3° 42°
Tilt: Backangle 87° 132° 87° 132°
Back manual recline (gasspring) 86° 130° 86° 130°
Back power recline 90° 135° 90° 135°
Armrest height 12 cm 21.5 cm 23 cm 32.5 cm
Legrest length 20 cm 82 cm 20 cm 82 cm
Total height 76 cm 82 cm 76 cm 82 cm
Total length with legrest 109 cm 126 cm 109 cm 126 cm
Total width 62 cm 62 cm 62 cm 62 cm
Power tilt 45° 45° 45° 45°
Maximum speed 6 (Standard) km/h 12 km/h 6 (Standard) km/h 12 km/h
Action radius 25 - 35 km 25 - 35 km 25 - 35 km 25 - 35 km
Maximum obstacle height 5 cm 5 cm 5 cm 5 cm
Ability to climb rated slope 12° 12° 12° 12°
Dynamic Stability Uphill
Batteries 50 x 2 / 70 x 2 Ah 50 x 2 / 70 x 2 Ah 50 x 2 / 70 x 2 Ah 50 x 2 / 70 x 2 Ah
Minimum ground clearance 6 cm 6 cm 6 cm 6 cm
Total weight (without batteries) 136 kg 142 kg 136 kg 142 kg
Maximum user weight 57 kg 57 kg 57 kg 57 kg
Turning radius 66 cm 66 cm 66 cm 66 cm
Drive FWD FWD FWD FWD
Motor capacity 450 W 450 W 450 W 450 W
Crash test safe Yes Yes Yes Yes
Hood colour Yellow, Rose Red, Blue, Black or RAL colour of choice Yellow, Rose Red, Blue, Black or RAL colour of choice Yellow, Rose Red, Blue, Black or RAL colour of choice Yellow, Rose Red, Blue, Black or RAL colour of choice

ISO Standard Measurement (ISO7176-5/ ISO7176-7/ ISO7176-15)

Characteristics
  • Manual (gasspring) or power back angle adjustment: Power tilt up to 45 degrees.
  • Power tilt: To 45 degrees (centre gravity) in standard configuration.
  • The height of the seat can optionally be powered adjusted from 480 to 780 mm.
  • The legrest is in height adjustable and has a biomechanical angle adjustment. An upgrade to a powered legrest will give the child the freedom to change position themselves.
  • The footrest is adjustable in angle and is suitable for fixation straps.
  • Multi-adjustable headrests: Four options: from simple to multiple settings of height, angle and curvature. The shape of the headrest can be adjusted for optimal support of the head: straight, rectangular, U-shaped, bowl-shaped or asymmetrical.
  • Biomechanical and adjustable back support: The back panels can be adjusted precisely and independently of each other. The backrest is infinitely adjustable in height and width.
  • Flip-up biomechanical armrests: The Kameleon has fixed and biomechanical arm supports that are mounted on the backrest. These are adjustable in height, width, depth and angle.
  • Hip support: The hip support is infinitely adjustable and can be swung away.
  • Custom seat that grows with the user: The seat is adjustable in height, depth and width. The minimum width and depth are 25 cm. The seat angle can be adjusted by placing modular wedges under the cushion.
  • Seat abduction: A multi-adjustable abduction will fit to the needs of every child.

Safety first

Children are impulsive. Safety is therefore paramount. The Kameleon was especially designed to withstand intensive use on rough terrain and bumpy roads.

Automatic speed reduction

  • The driving speed is automatically reduced when the seat lift and seat tilt are activated.
  • The drive function is automatically blocked when the table is turned over.

Highest safety standards
The Kameleon is crash-test safe and suitable for transport in a motor vehicle or school bus.

Maximum base stability
The large, driven front wheels easily find their way across all surfaces.
4-point seat belt Front anti-tippers Bumper on rear wheel

Front anti-tippers
The anti-tippers at the front wheel ensure a stable platform at any angle and maximum stability when braking.

Gyro technology
Gyro technology helps to maintain direction and control when overcoming obstacles such as thresholds, kerbs or external forces.
