Evo Lectus Low Rider

Evo Lectus Low Rider, doing what is important for you.
Developed with the end user’s needs in mind taking into account the needs of everyone involved, such as the user’s family, the care professional and the service mechanic. With its modern design the Evo Lectus Low Rider is a high-end electric wheelchair. Has extensive connection options for taking control of the environment. The biomechanical leg and arm supports make it easy for the user to make transfers. The Evo Lectus Low Rider is characterised by the combination of mobility with power and individual seat support.

Customised seat and recline support
Manoeuvrable at home and in the office
Extensive control options
Comfortable and safe on the road
Reliable and easy to maintain
Modern design

Compare Parts catalogue

Product images
Specifications
Characteristics
Downloads

Product images

Abbr.	Measurement points	Specifications
SW	Seat width	42 - 62 cm
SD	Seat depth	37,5 - 57,5 cm
SH	Min. seat height (including cushion)	41,5 cm
TH	Total height	111 cm
TL	Total length	98,5 cm
TW	Total width	61,5 cm
	Seat angle reach	15º (standard) 30º / 50º, electric
	Seat lift	40 cm, electric
	Back angle reach	180º, electric
	Recline position	180º, electric
	Leg rest adjustment	180º, electric
	Leg length adjustment range	25 to 60 cm
	Maximum speed	6 km/h, 10 km/h, 12,5 km/h
	Action radius	30 – 45 km
	Batteries	2 x 70Ah / 85Ah (optional)
	Total weight (including batteries)	185 kg
	Maximum user weight	140 kg
	Turning radius
	Front wheels diameter	14”
	Rear wheels diameter	8”
	Complies with	ISO 7176-19 & ISO 10542-2012
	Drive	FWD
	Seating system	Lectus
	Controls	R-Net
	Motor capacity	2 x 320W (4-P)
	Crash test safe	Yes
	Hood colour	White / Orange / Silver

Characteristics

Customised seat and recline support

can be quickly and easily adapted to the changing needs of users
always the required sitting and recline position
can go from sitting to full recline position without transfer needed
seat elevator has a high range for participation and independence

Manoeuvrable at home and in the office

small turning radius and front wheel drive
controls swing-away to fit under table

Extensive control options

high-end controls

Comfortable and safe on the road

independent suspension
holds its course thanks to built-in gyroscope
manoeuvrable and powerful on slopes and over obstacles
stable due to centre of gravity correction during seat tilt

Reliable and easy to maintain

reliable, proven high-quality parts
service-sensitive parts easy to access

Modern design

efficient design in 3 standard colours
LED lighting
IF Award for design

Downloads

EVO Lectus Low Rider User Manual

See Download

Evo Lectus LR Declaration of Conformity Karma EN

See Download

Evo Lectus Low Rider

Sit at eye level

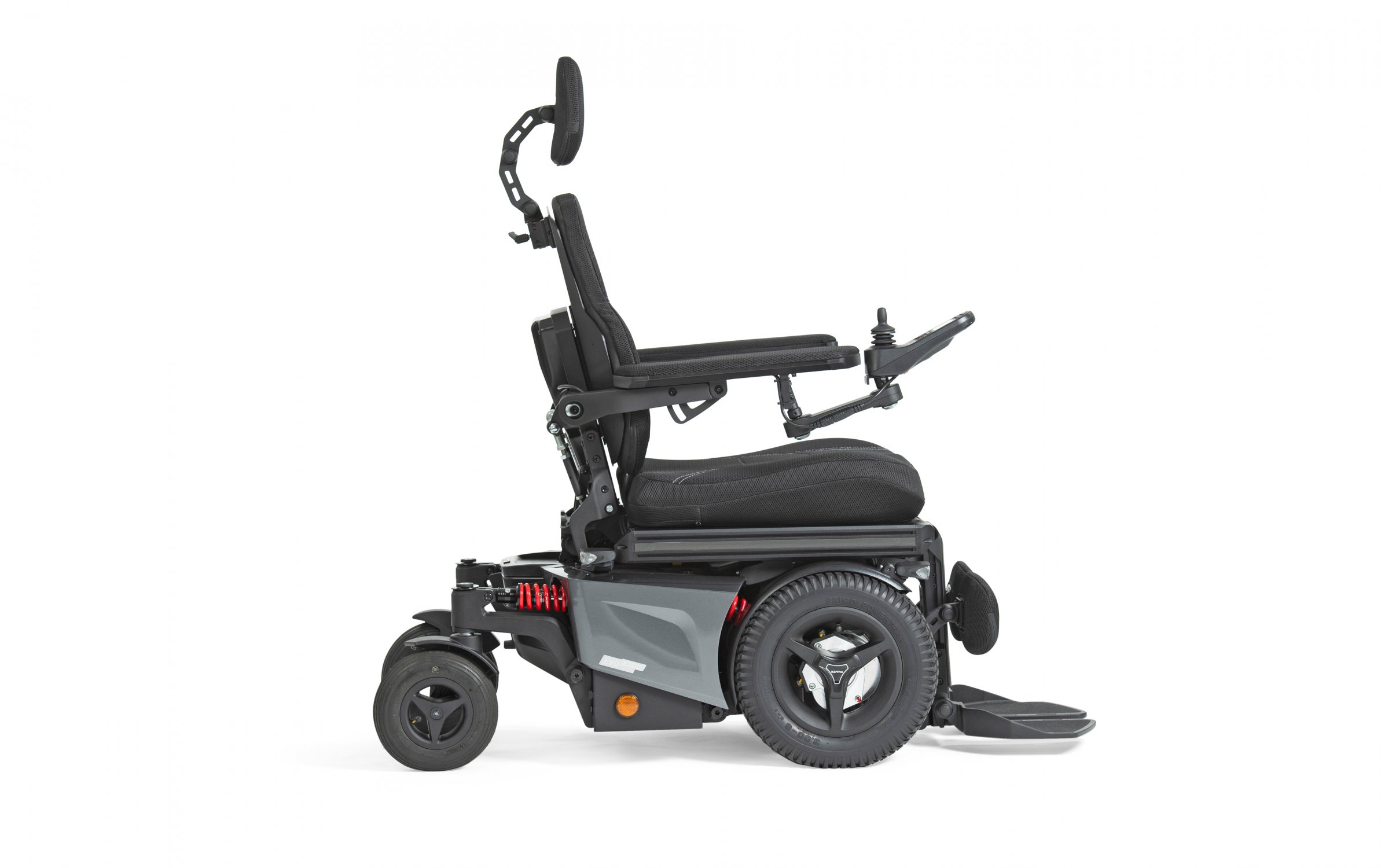

Lowest sitting position

Relax position low

Front view

Rear view

Front view

Lying position high

Lying position low

Anti-tip wheels

Anti-tip wheels
