EVO Altus

EVO Altus
The EVO Altus expands on the already extensive Karma product range. With its unique design and form in combination with its multiple functionality and the ability to be easily adapted for individual customisation this makes it the perfect choice for your new standing powerchair.

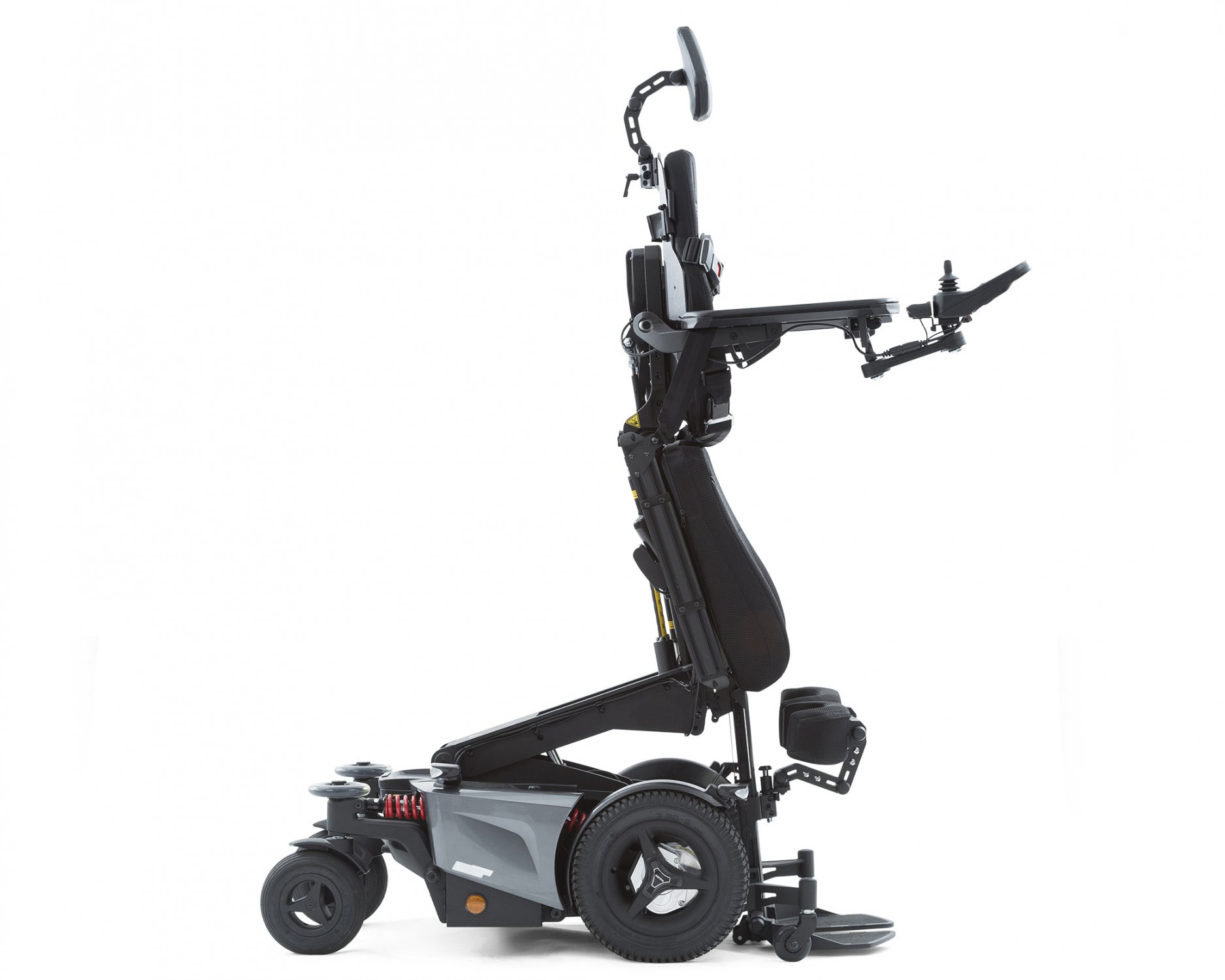

The EVO Altus captivates with its extremely low seat to floor height this in combination with a battery capacity of up to 85ah without incurring any restrictions on the seat positioning. So, whether you are in a sitting/standing/lying or even a personally tailored stand position nothing is impossible! The chair offers a variant of speed options ranging from 4/6/8mph, this in-conjunction with the chassis’ proven hydraulic independent suspension system maximising the comfort and ride quality of the EVO Altus. During the development of the EVO Altus the ease of adjustment and servicing was at the forefront of its design allowing service technicians to grow the seat depth without the need for any additional components such as linkage bars. The R-Net-control system is fitted to the chair as standard. This allows you to operate the many electrical functions of the chair through the joystick and this system also serves as a platform for a wide variety of specialist steering controls such as chin control, head control and switch control it even has the facility to operate infrared and Bluetooth devices through the joystick with R-Net controls the possibilities are endless.

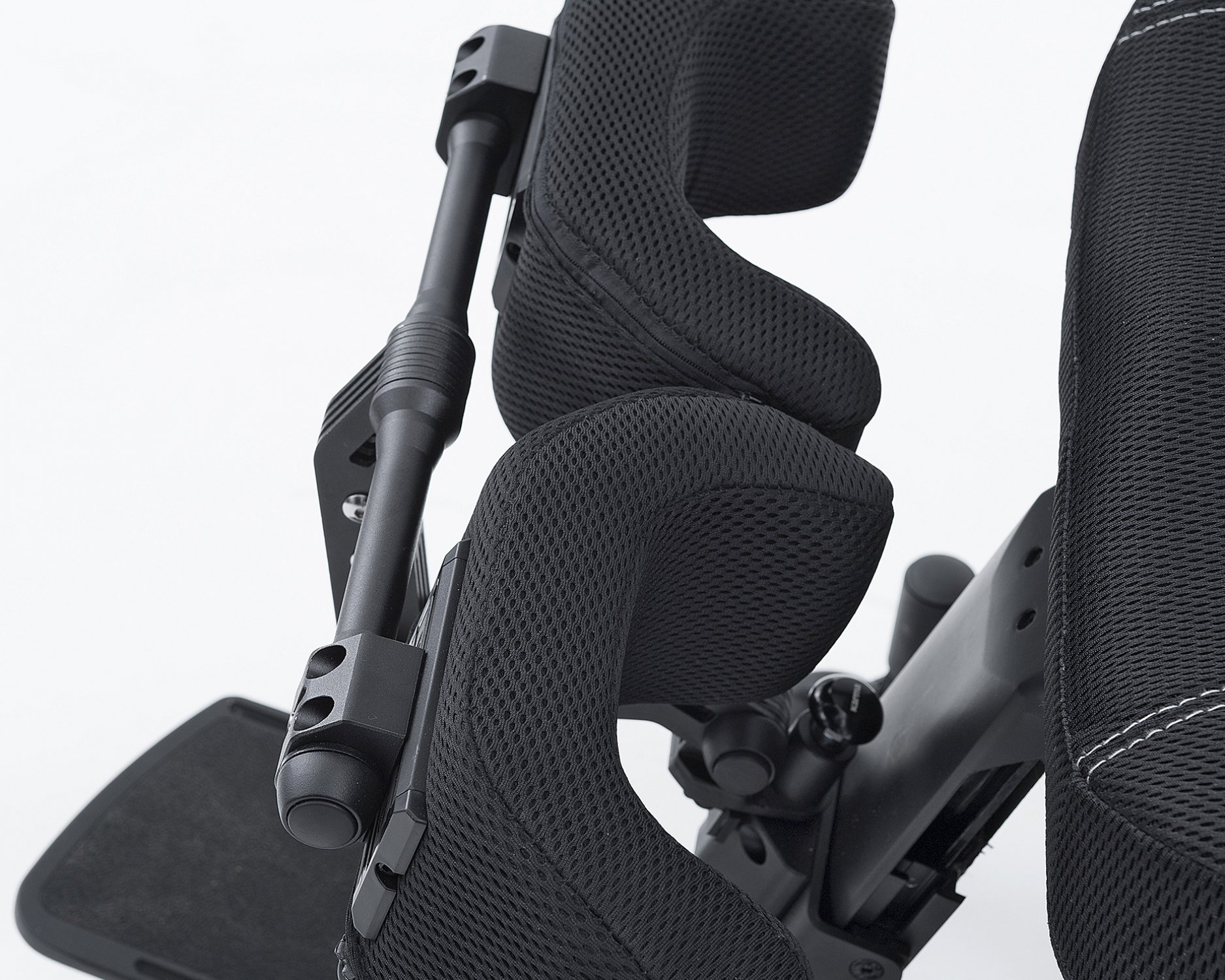

  • Central leg support with bio-mechanical length compensation
  • Leg length adjustment range is from 25 to 60cm

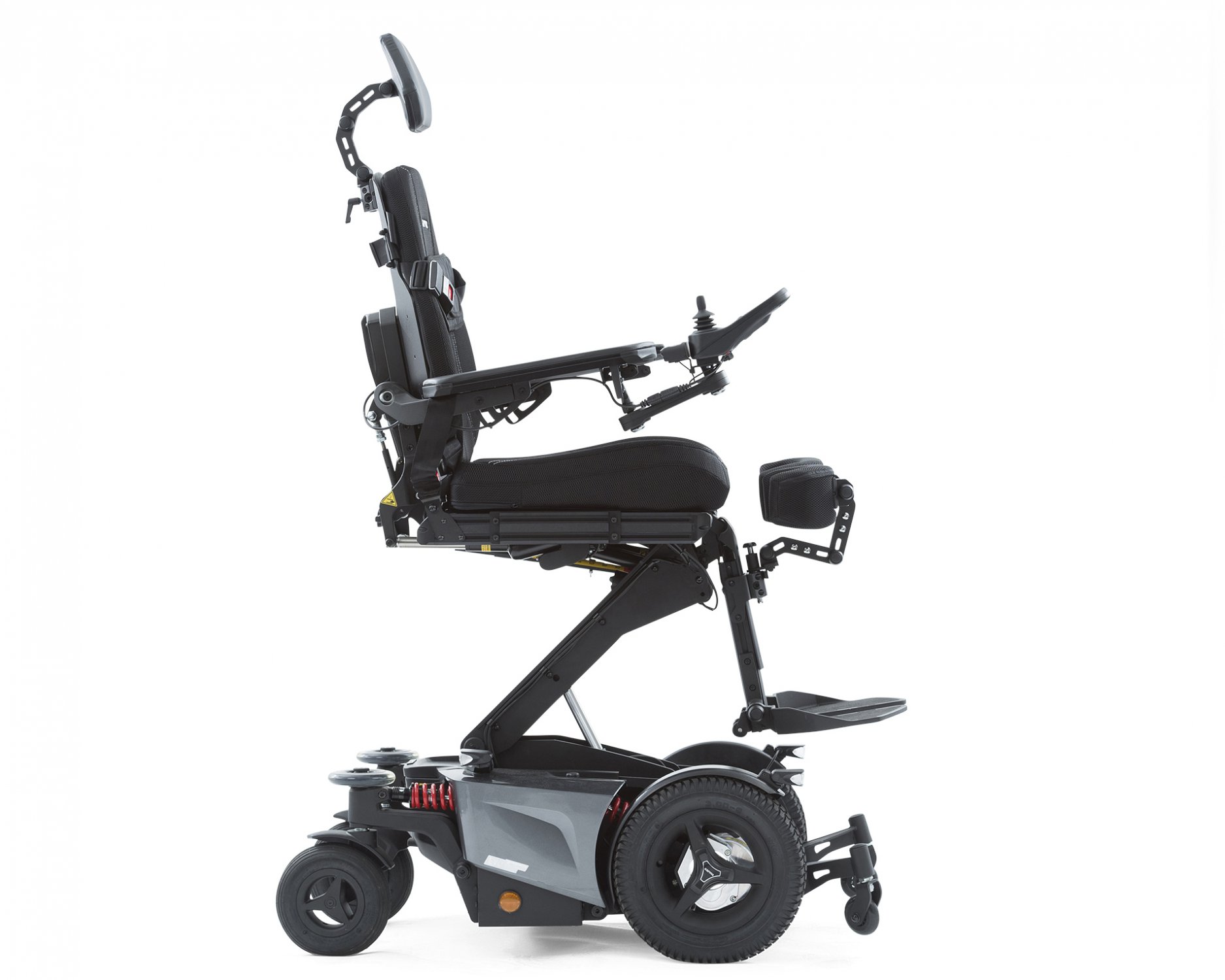

  • 400mm powered seat height adjustment
  • Standard powered tilt in space from 0 – 15°
  • Powered backrest adjustment ranging from 90 – 180°

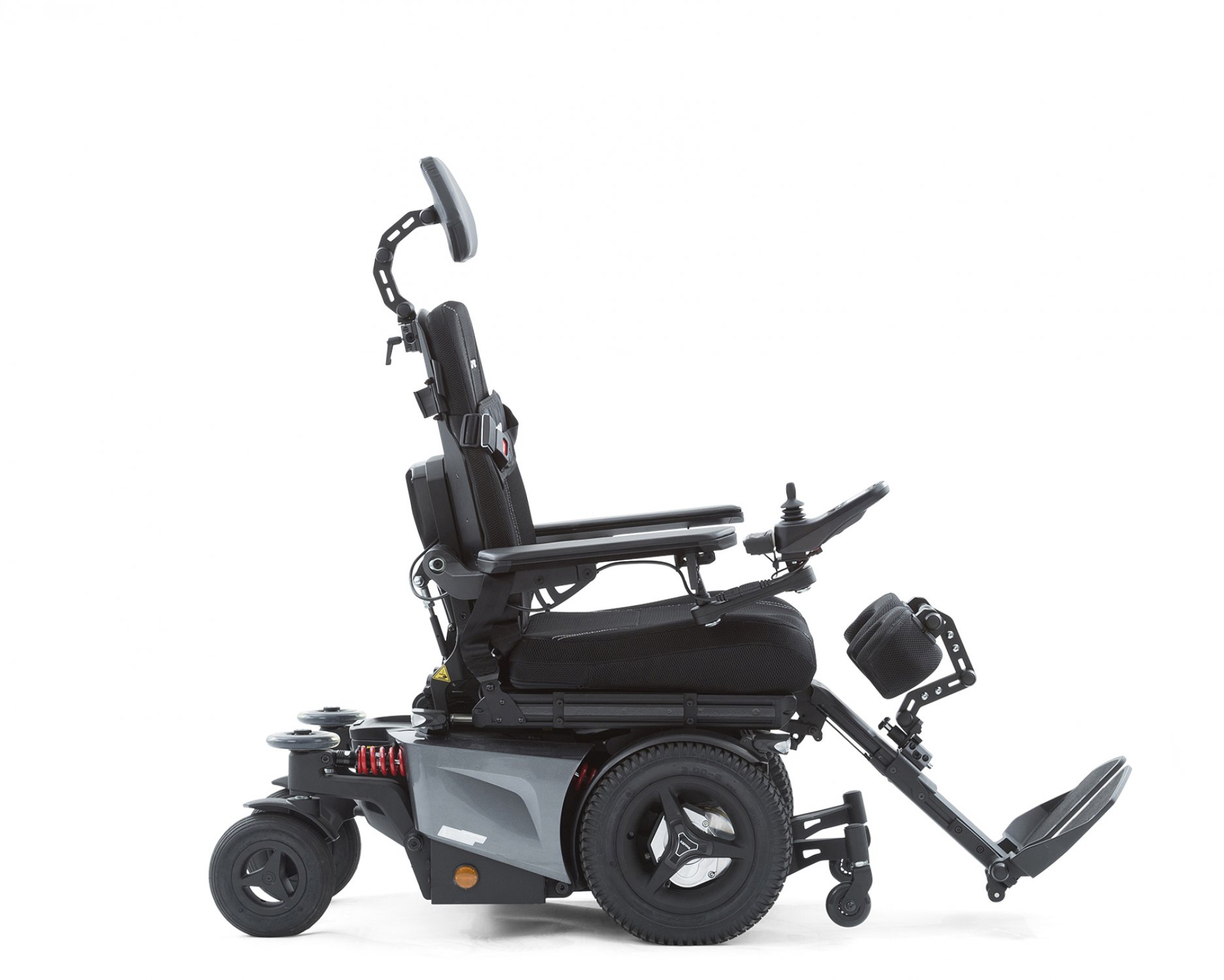

  • Powered bio-mechanical leg rests elevating from 90 – 180°
  • Powered seating relaxed positioning 180°
  • High-powered front and rear LED-lighting

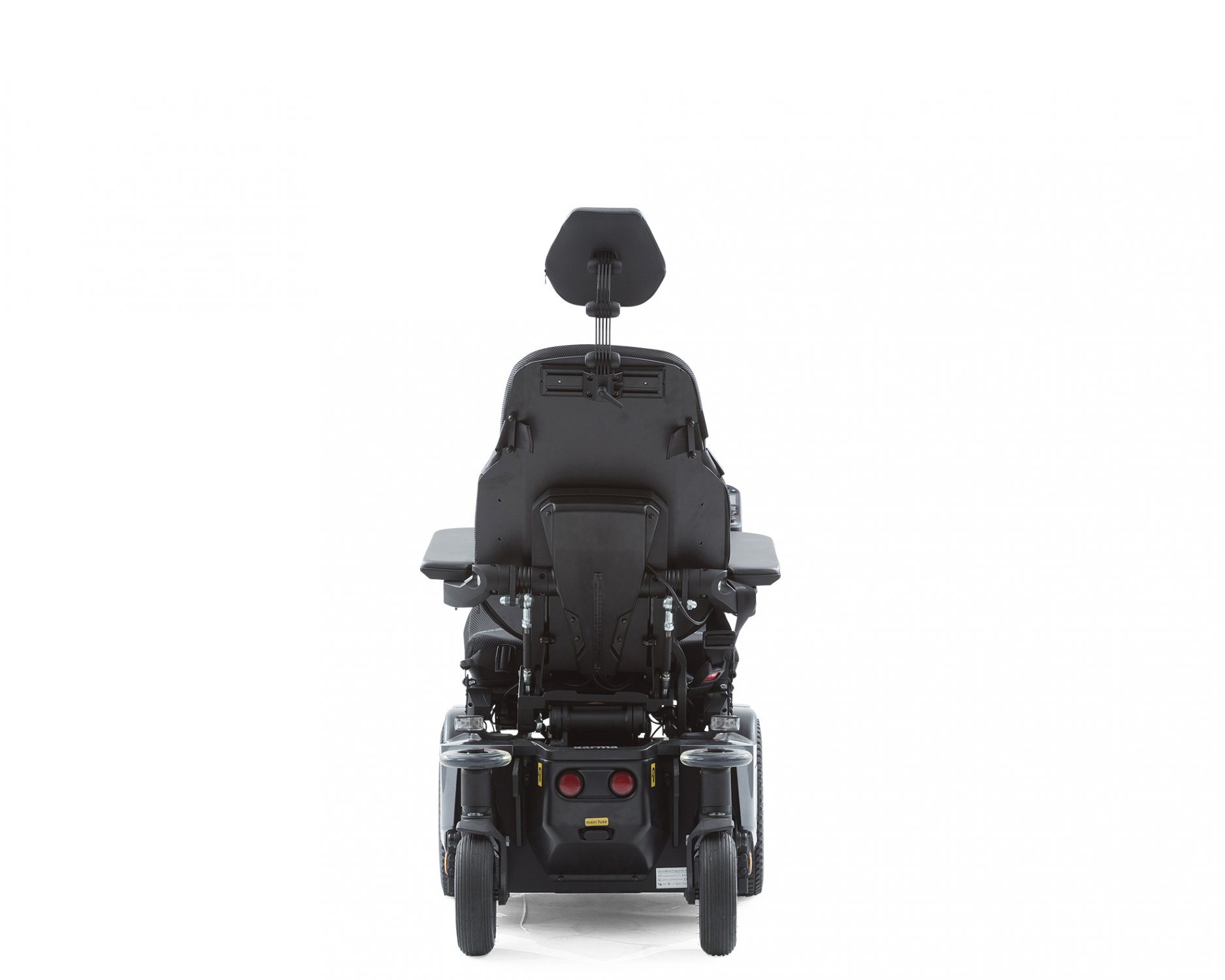

Product images
Specifications
Abbr. Measurement points Specifications
SW Seat width 42 - 62 cm
SD Seat depth 37,5 - 57,5 cm

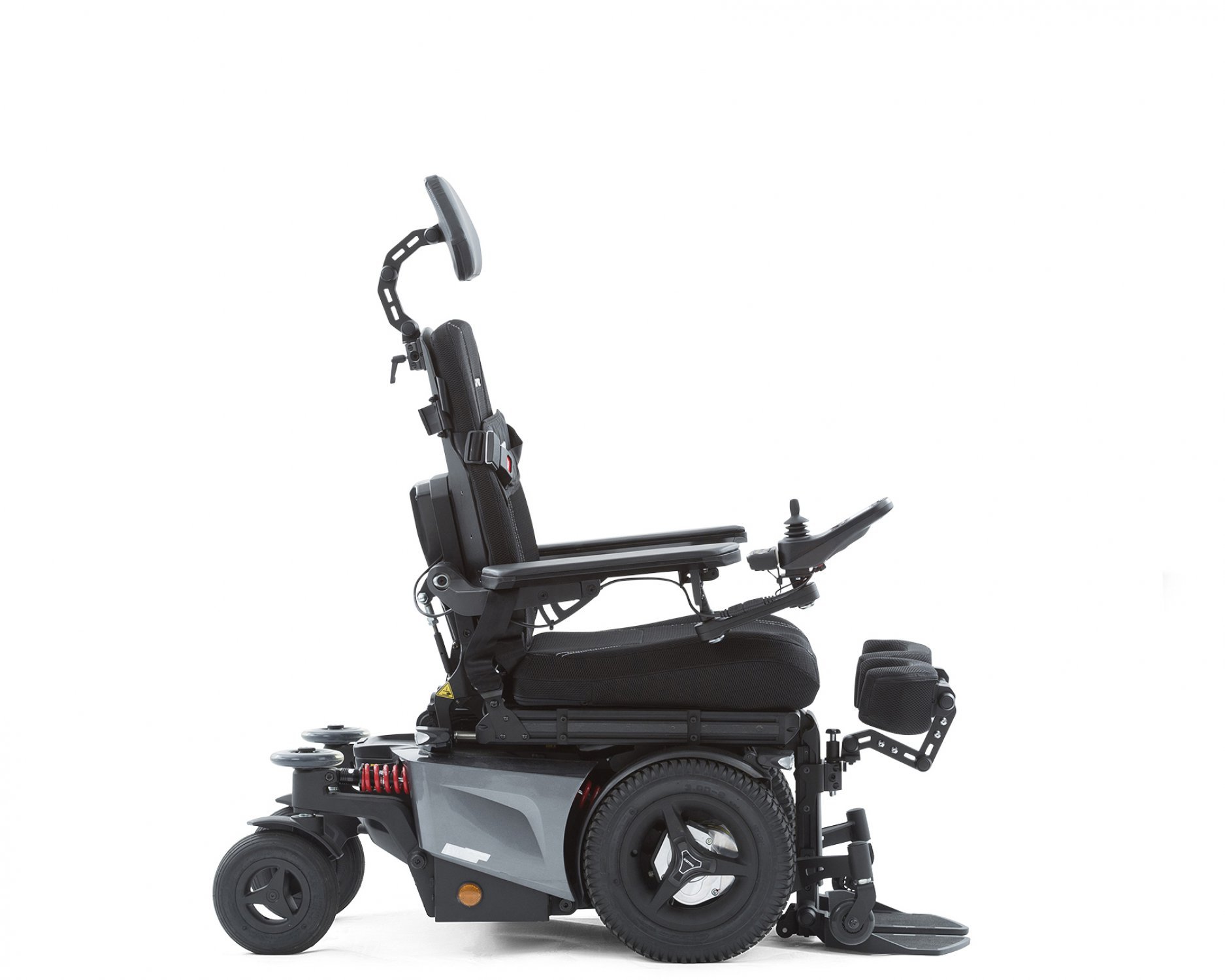

SH Min. seat height (including cushion) 41,5 cm
TH Total height 111 cm
TL Total length 98,5 cm
TW Total width 61,5 cm
Seat angle reach 15º (standard) 30º / 50º, electric
Seat lift 40 cm, electric
Back angle reach 180º, electric
Recline position 180º, electric
Leg rest adjustment 180º, electric
Leg length adjustment range 25 to 60 cm
Maximum speed 6 km/h, 10 km/h, 12,5 km/h
Action radius 30 – 45 km
Batteries 2 x 70Ah / 85Ah (optional)
Total weight (including batteries) 185 kg
Maximum user weight 136 kg
Turning radius
Front wheels diameter 14”
Rear wheels diameter 8”
Complies with ISO 7176-19 & ISO 10542-2012
Drive FWD
Seating system Altus
Controls R-Net
Motor capacity 2 x 300W (4-P)
Crash test safe Yes
Hood colour White / Orange / Silver
Characteristics

EVO Altus in brief

  • Central leg support with bio-mechanical length compensation
  • Leg length adjustment range is from 25 to 60cm
  • 400mm powered seat height adjustment
  • Standard powered tilt in space from 0 – 15°
  • Powered backrest adjustment ranging from 90 – 180°
  • Powered bio-mechanical leg rests elevating from 90 – 180°
  • Powered seating relaxed positioning 180°
  • High-powered front and rear LED-lighting

Options

  • Powered tilt in space 30 or 50°
  • 85 Ah batteries
  • Speed 4/ 6/ 8mph
  • Table tray
  • Puncture proof tyres
  • 3D adjustable headrest

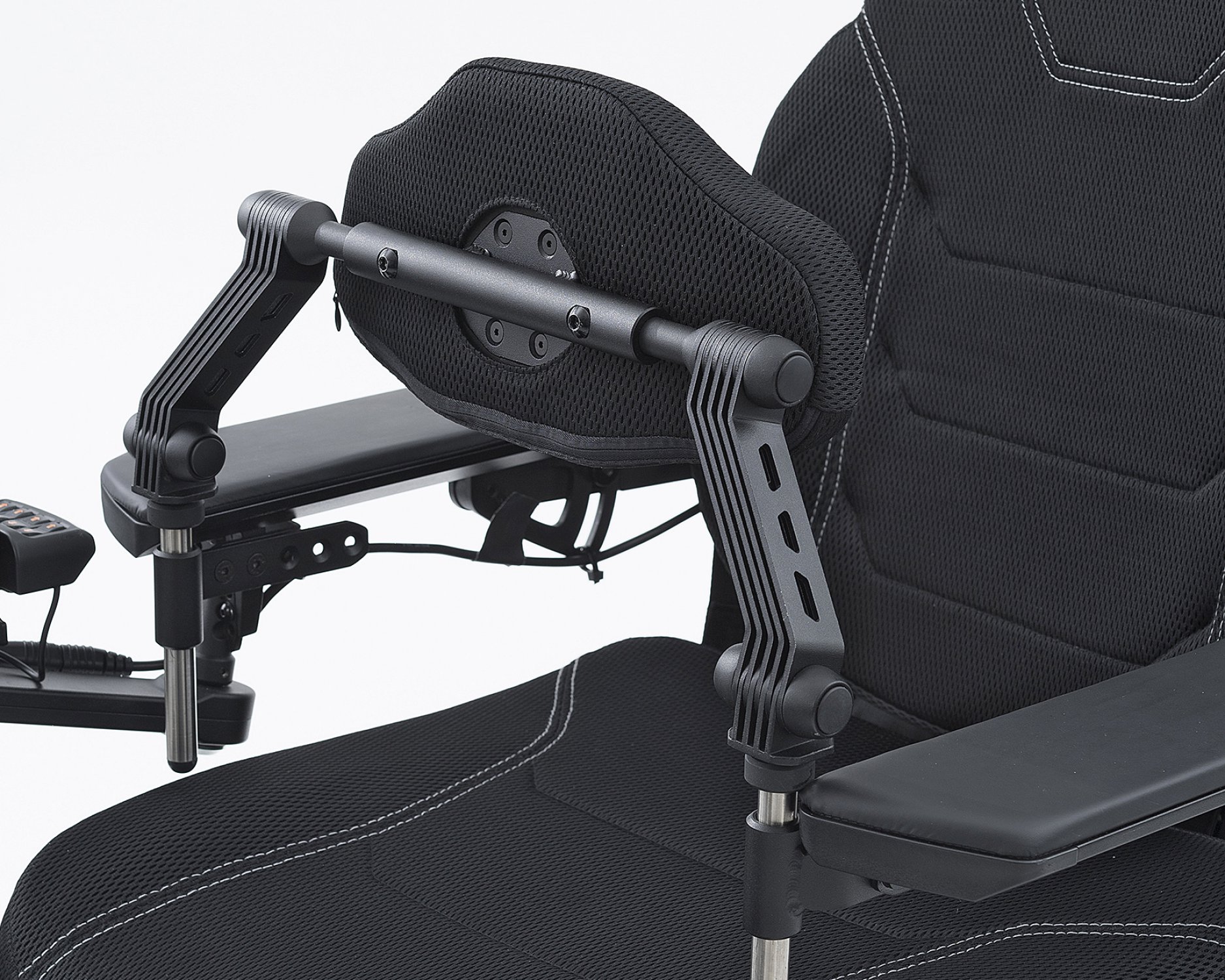

  • 3D adjustable chest support bar with ergonomic cushion

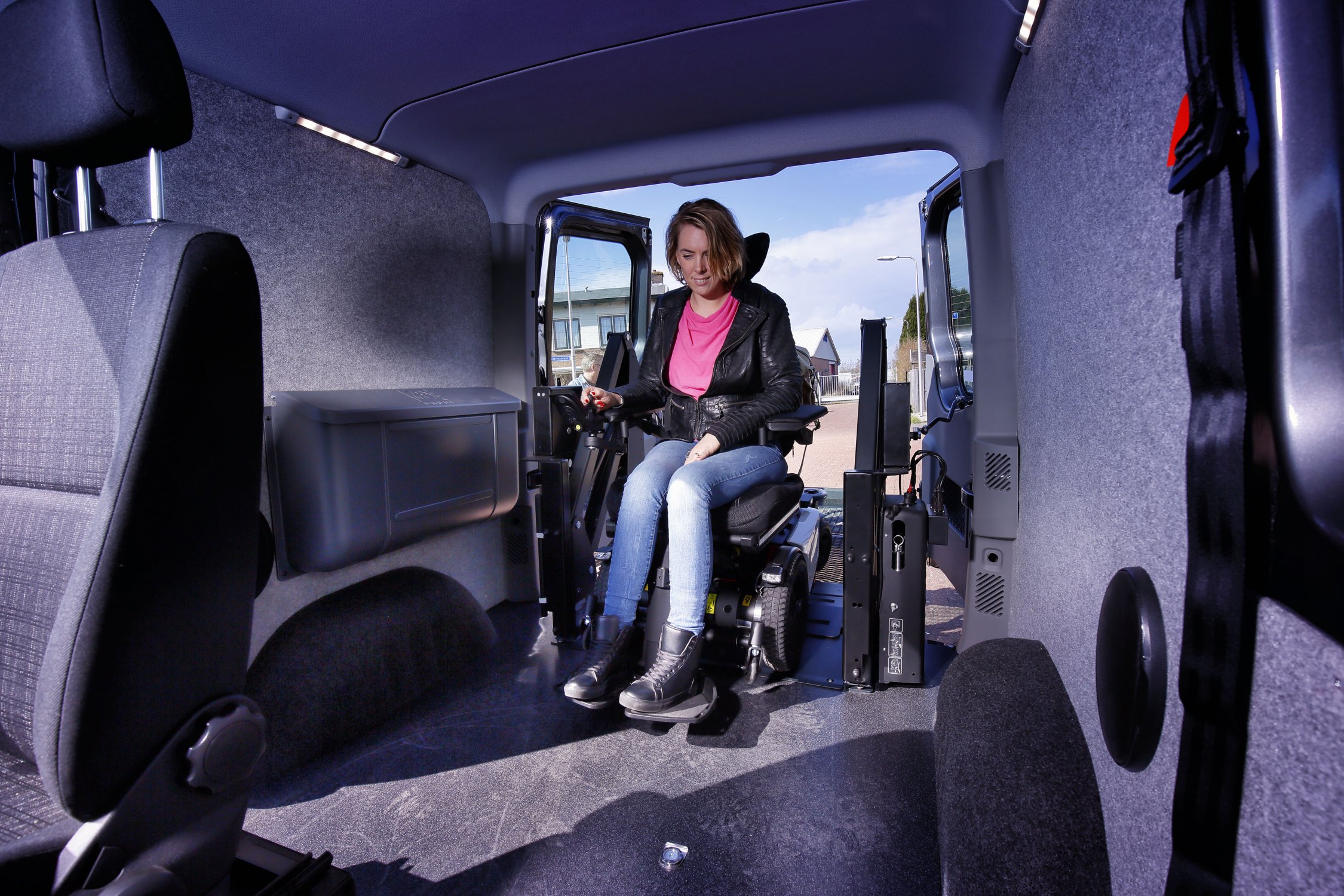

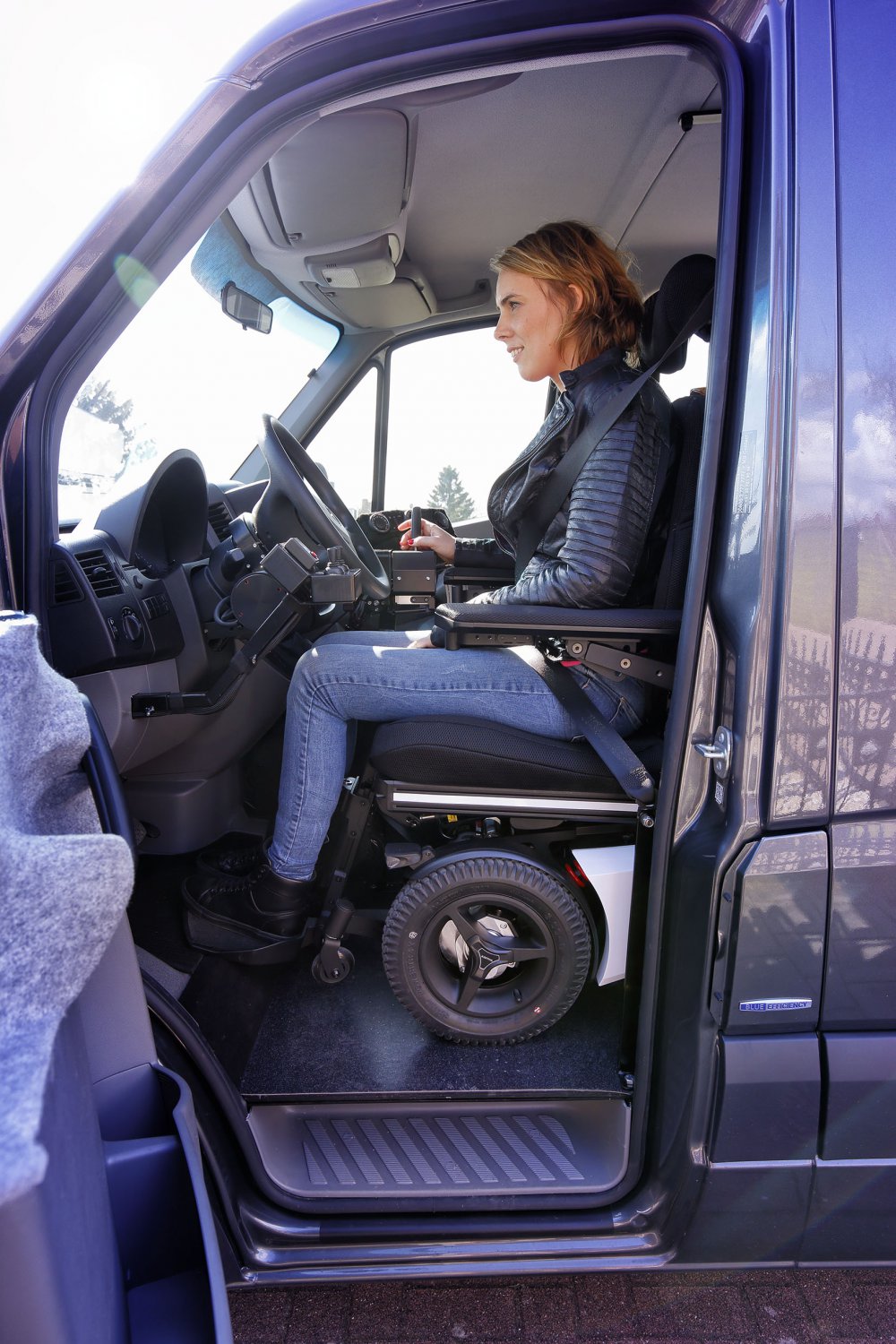

  • Dahl docking station for your car
