Ergo Traveller

Ergo Traveller
The ‘Ergo Traveller’ is Karma’s most economic power wheelchair. It is lightweight and compact design guarantees outstanding maneuverability during indoor use.

The powerful base also ensures great outdoor perfomance. The concept behinf the design of the “Ergo Traveller” was to make it is as light as possible and convenient to transport. The patent S-Ergo system promotes pressure redistribution, reduces downward sliding and helps maitain goos posture. The ” Ergo Traveller” can be taken apart quickly and easy into three easy to handle components. The heaviest part weighs just 24kg. The quick release battery box has a convenient charging point built into it, wich allows the batteries to be charged away from the power chair.

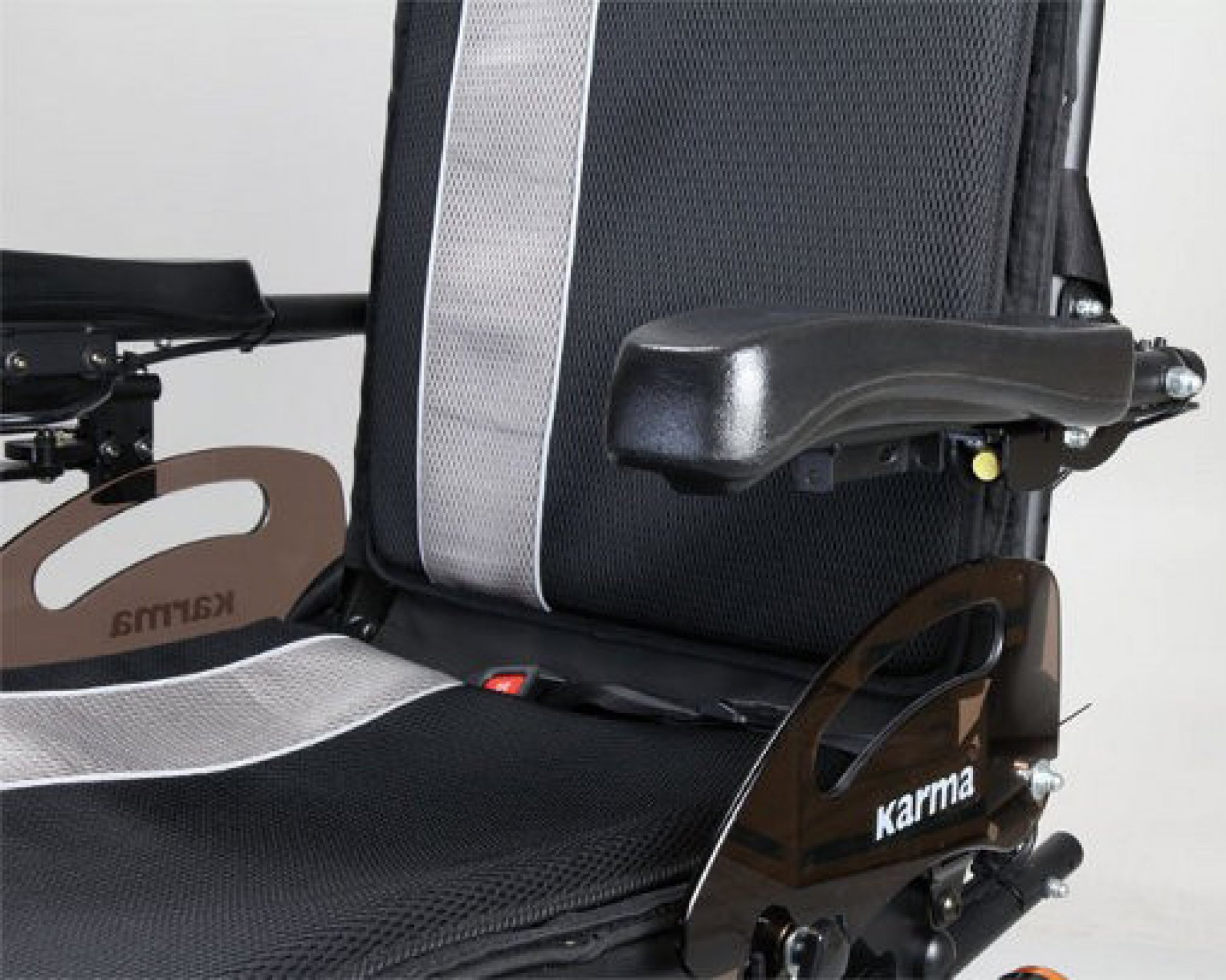

  • Ergonomic seat system provides comfortable seating
  • Tool-free disassembled into 3 parts for travelling and transportation
  • Quick-release battery pack
  • Washable upholstery
  • Height adjustable and flip back armrest
  • 2-staged adjustable back angle
  • 3-staged height adjustable footrest
  • Right or left hand joystick control positions
  • Lightweight design, the heaviest part after taking it apart is only 24 kg
Product images
Specifications
Abbr. Measurement points Specifications
SW Seat width 43 cm
SD Seat depth 45 cm
SH Min. seat height (including cushion) 45 cm
TH Total height 93 cm
TL Total length 103 cm
TW Total width 62 cm
Back angle reach 5° or 19°
Maximum speed 6 km/h
Action radius 12 km
Batteries 2 x 22Ah
Total weight (including batteries) 49 kg
Maximum user weight 115 kg
Turning radius
Drive RWD
Seating system S-Ergo
Electronics VR2
Controls Joystick (left or right)
Attendent joystick kit (optional)
Motor capacity 2 x 200W
Crash test safe -
Hood colour Black
Characteristics

Ergo Traveller in brief

  • Ergonomic seat system provides comfortable seating
  • Tool-free disassembled into 3 parts for travelling and transportation
  • Quick-release battery pack
  • Washable upholstery
  • Height adjustable and flip back armrest
  • 2-staged adjustable back angle
  • 3-staged height adjustable footrest
  • Right or left hand joystick control positions
  • Lightweight design, the heaviest part after taking it apart is only 24 kg

Options

  • Elevating and swing-away footrest
  • Attendent joystick kit
  • Parallel swing away joystick
