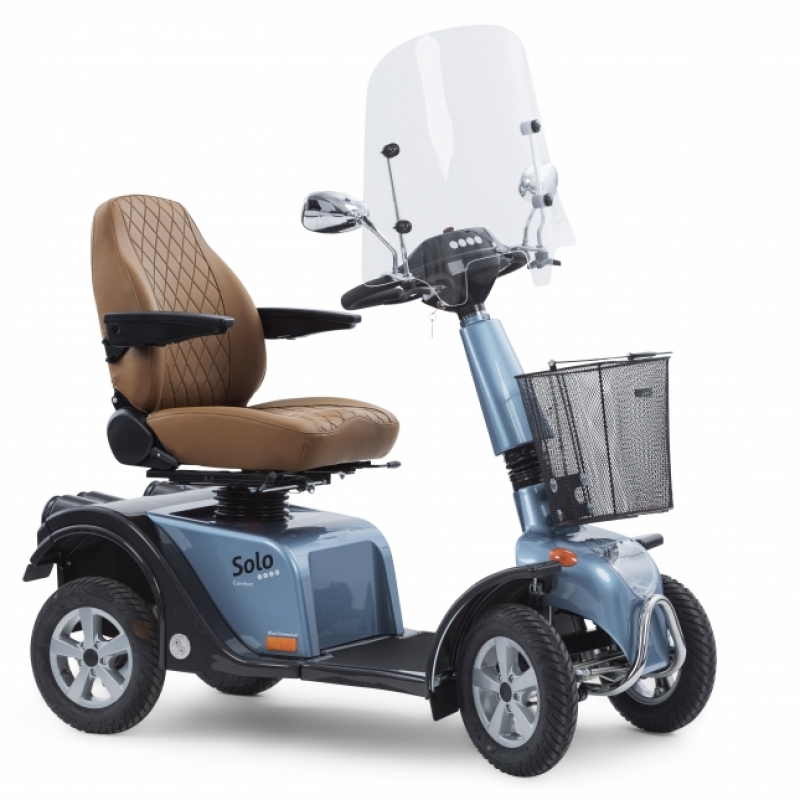

Solo Blue Diamond

Solo Blue Diamond

Solo Blue Diamond

Let your Solo shine with the Blue Diamond package. The familiar quality of the Solo, such as the powerful battery and extra high comfort level, in a unique blue version.

  • All the advantages of the reliable Solo with an elegant retro look
  • With cruise control and an operating range of up to 70 km it’s tireless on long distances
  • The Solo is fast, it has no trouble keeping up with an electric bicycle at 18 km/h
  • The INDEGO suspension system can be adjusted to active, comfortable or extra suspension
  • Three pre-programmable drive settings
  • Find your nearest dealer using our dealer locator!
Compare Parts catalogue
Product images

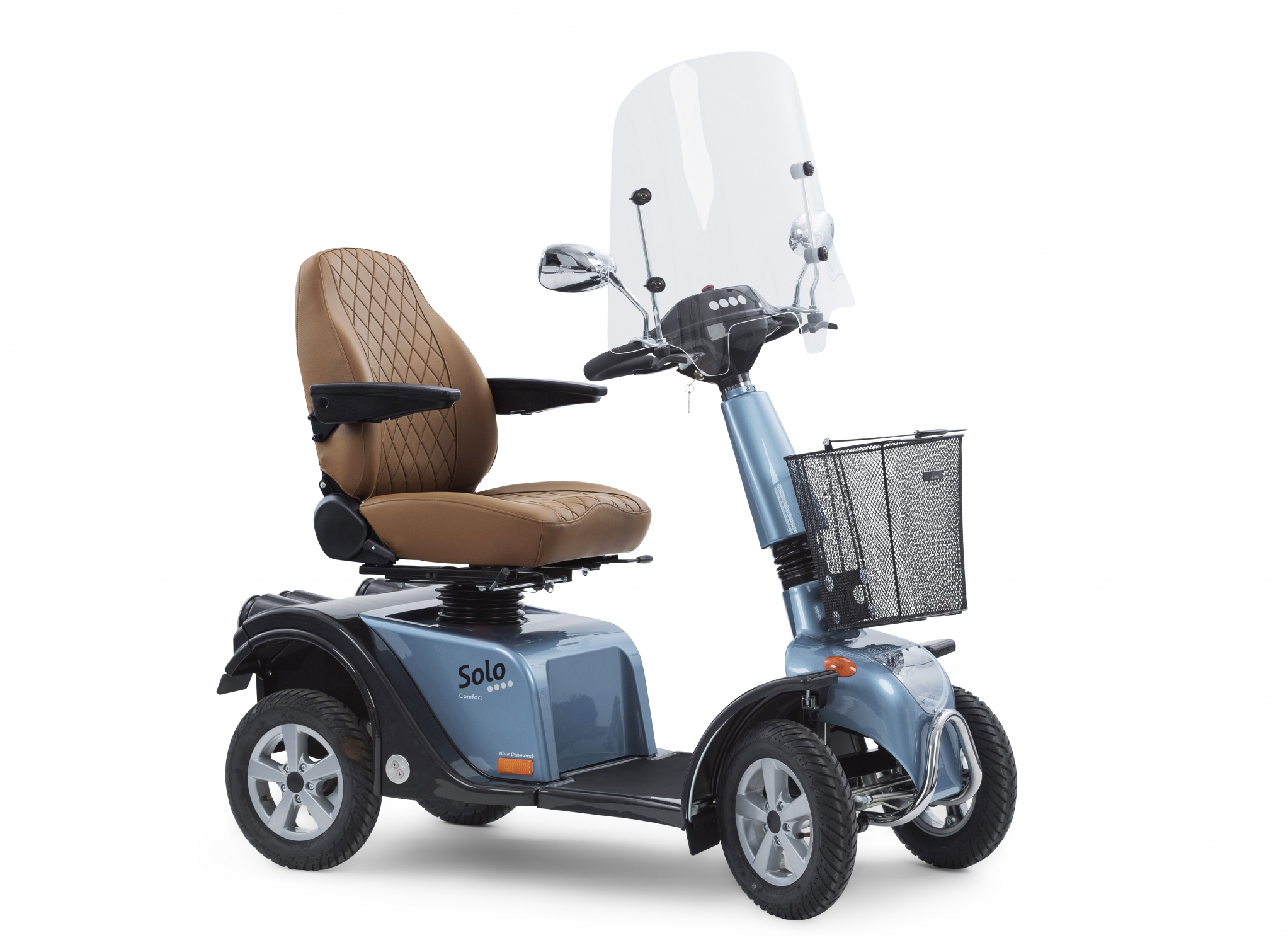

Solo Blue Diamond 4
Solo Blue Diamond 4

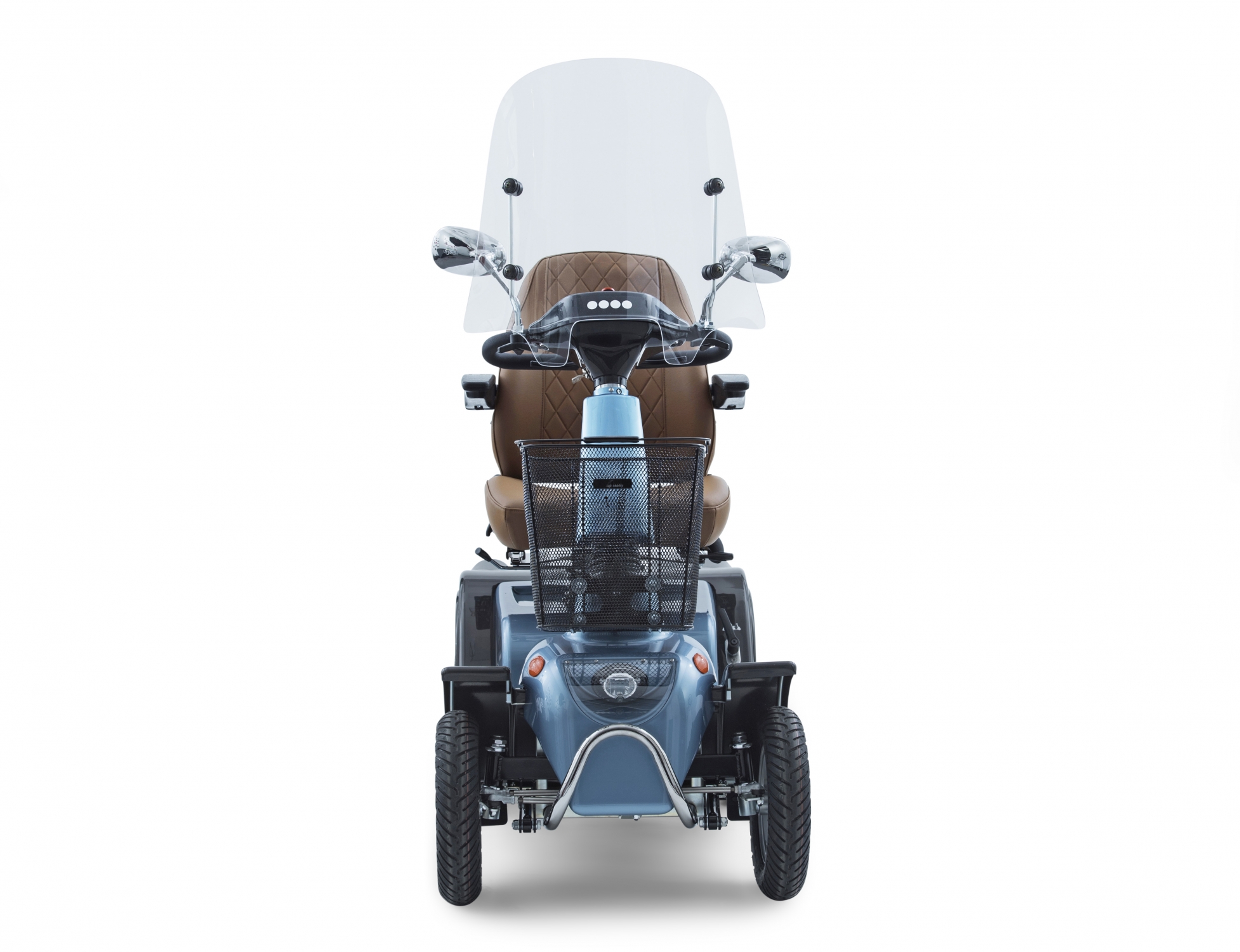

Solo Blue Diamond 4 front view
Solo Blue Diamond 4 front view

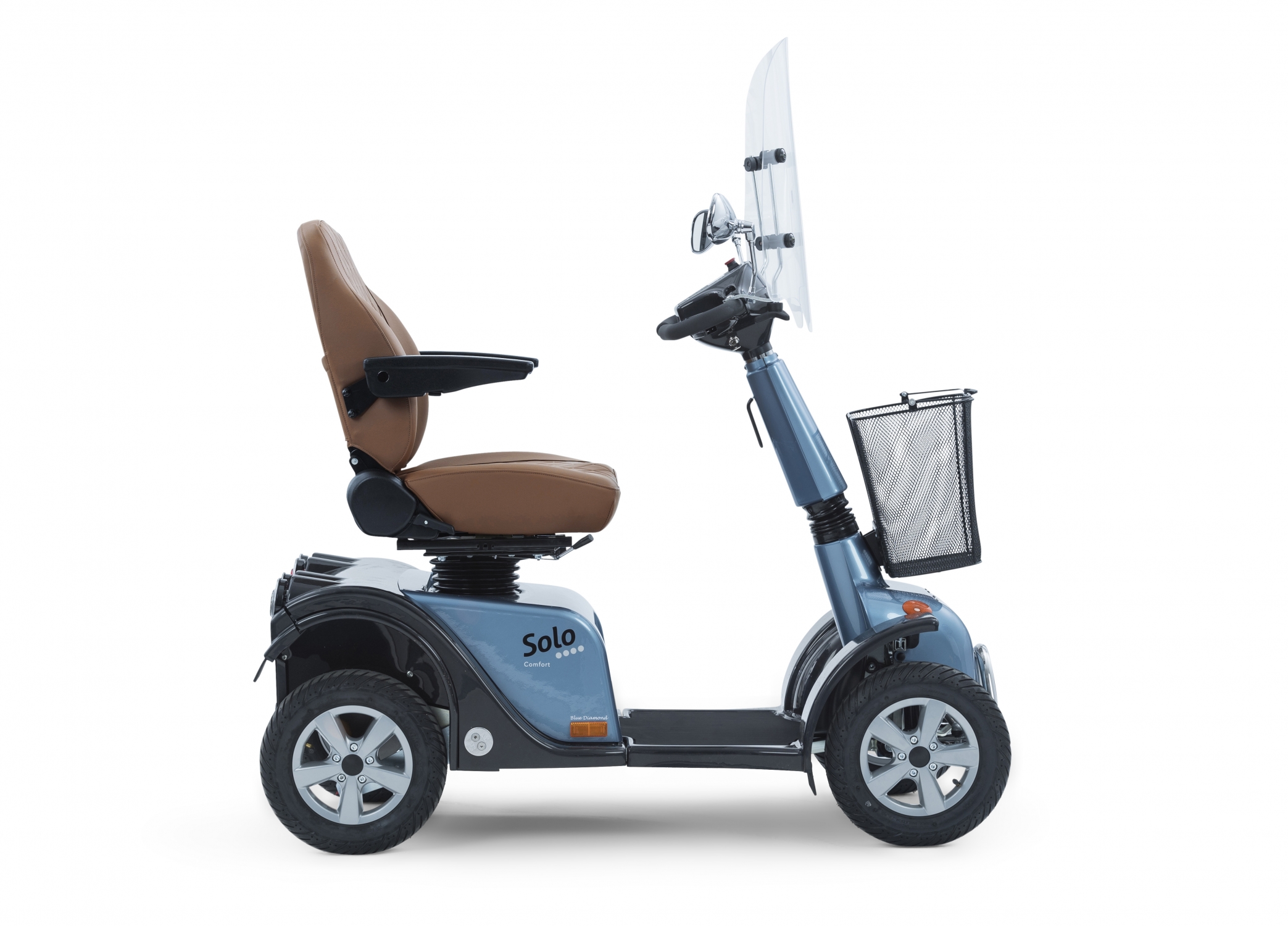

Solo Blue Diamond 4 side view
Solo Blue Diamond 4 side view

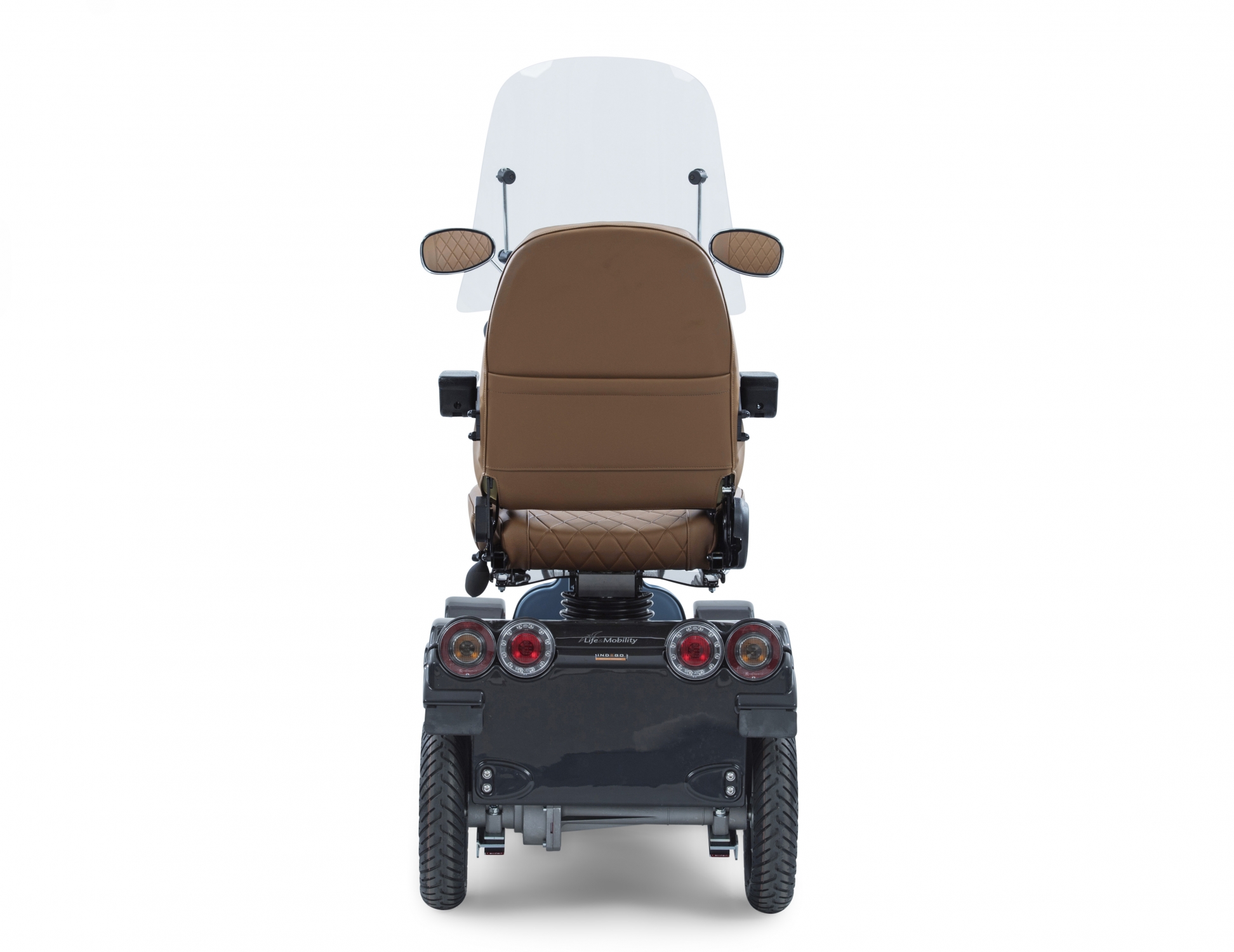

Solo Blue Diamond 4 back view
Solo Blue Diamond 4 back view

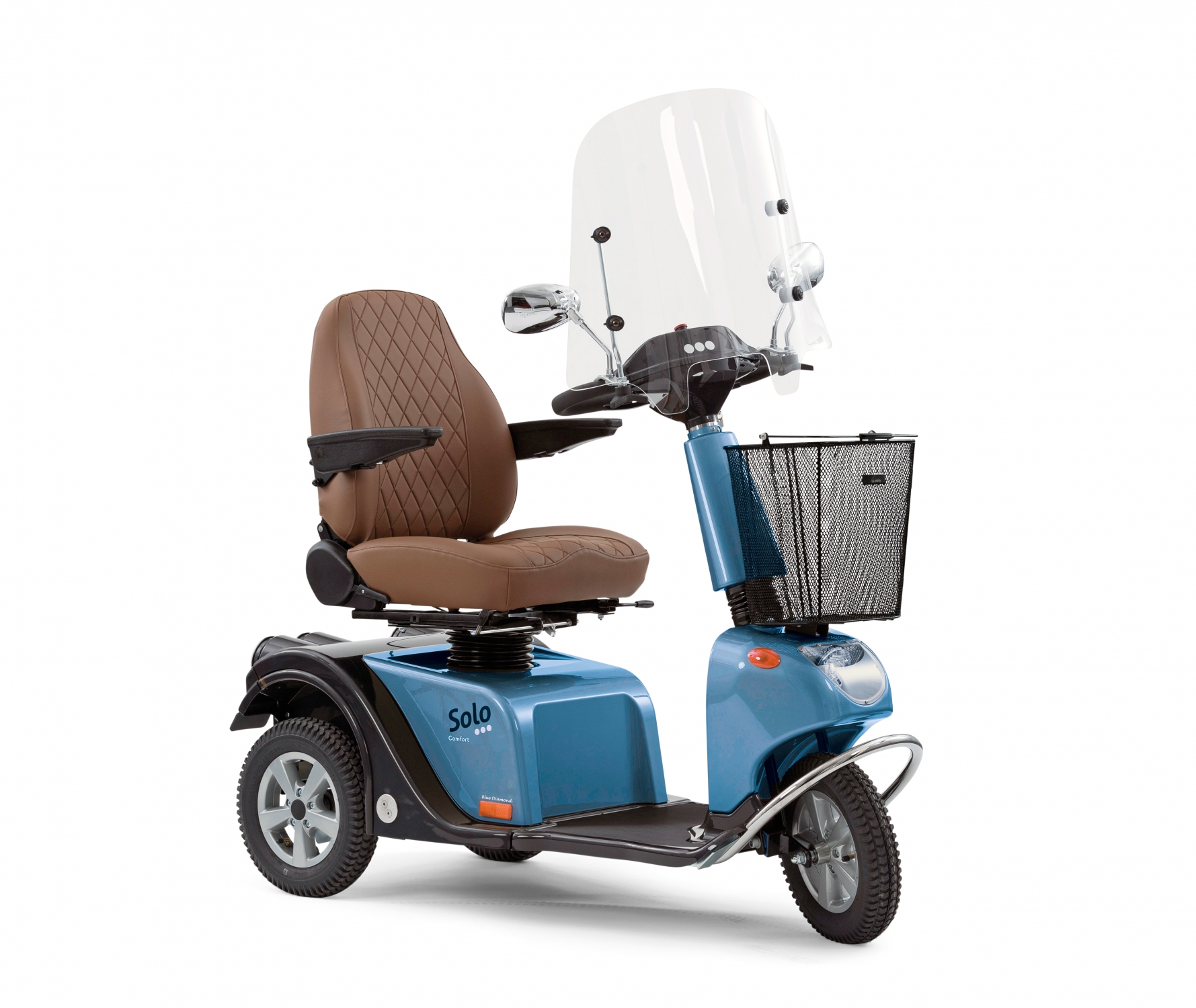

Solo Blue Diamond 3
Solo Blue Diamond 3
Specifications
Solo 3 Blue Diamond Measurement points Specifications
HS Height scooter 155 cm
LS Length scooter 140 cm
WS Width scooter 64 cm
HF Height footplate 17 cm
SW Seat width 48 cm
SD Seat depth 44 cm
SH Seat height in relation to plate 45-53 cm
Maximum speed 18 km/h
Action radius 40 / 50 / 70 km*
Battery (Gel) 60 Ah / 73 Ah / 97 Ah
Charger 6A/24V, 8A/24V, 12A/24V
Total weight (excl. batteries) 96 kg
Maximum load bearing capacity 160 (option: 200 kg)
Turn radius 140 cm
Maximum gradient 10˚
Wheel size (pneumatic tyres on split rims) 3.00 - 8”
Complies with EN 12184 category C

* Depending on the set speed, outside temperature, weight of user, tyre tension etc.

afmetingen
Solo 4 Blue Diamond Measurement points Specifications
HS Height scooter 155 cm
LS Length scooter 140 cm
WS Width scooter 64 cm
HF Height footplate 17 cm
SW Seat width 48 cm
SD Seat depth 44 cm
SH Seat height* in relation to plate (incl. slide) 45-53 cm
Maximum speed 18 km/h
Action radius 35 / 45 / 65 km*
Gel batteries 60 Ah / 73 Ah / 97 Ah
Charger 6A/24V, 8A/24V, 12A/24V
Total weight (excl. batteries) 105 kg
Maximum load bearing capacity 160 (option: 200 kg)
Turn radius 167 cm
Maximum gradient 10˚
Engine power 750W
Wheel size (pneumatic tyres on split rims) 3.00 - 8”
Complies with EN 12184 category C
afmetingen
Characteristics

Solo Blue Diamond in brief

  • Unique patented Indego suspension, available in 3 levels of stiffness
  • Max 70-km operating range (under ideal conditions)
  • High load capacity (max 160 kg/200 kg)
  • Available in 3 & 4-wheel models
  • Generous leg and foot room, also for 4-wheeler
  • Optional: Forza engine for more traction
  • Simple steering column adjustment
  • Easily programmable control for left and/or right-handed drivers
  • Swivel seat with suspension, sliding rails and seat height adjustment
  • Adjustable, air-cushioned lumbar support
  • Adjustable, folding armrests
  • Freewheel lever
  • Clear control panel with illuminated display
  • Three pre-programmable drive settings
  • Adjustable speed (max 18 km/h)
  • Cruise control
  • Emergency stop button
  • Adjustable horn volume
  • Clearly visible front & rear lighting
  • Programmable speed limiter in bends
  • Indicators turn off automatically after the corner
  • Blue Diamond-coloured caps
  • Oak brown upholstery with a chequered pattern
  • Windshield and chrome mirrors
